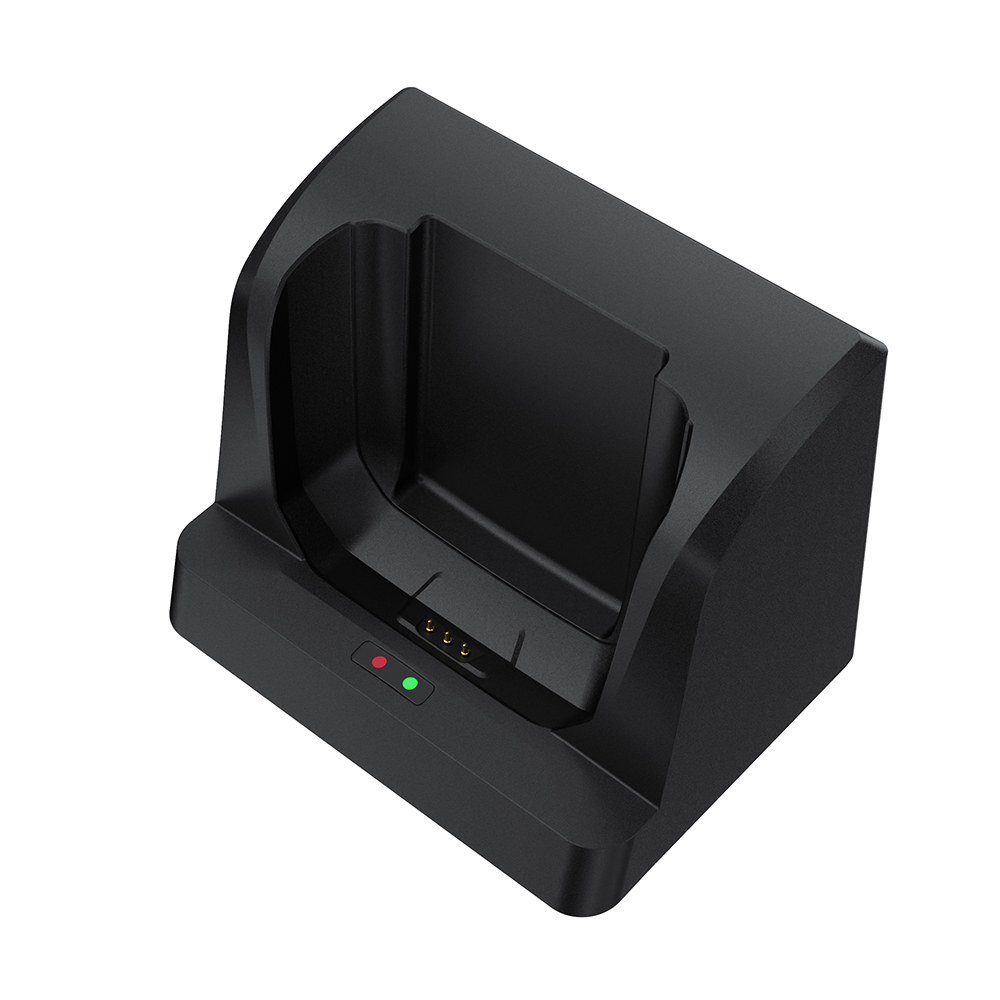

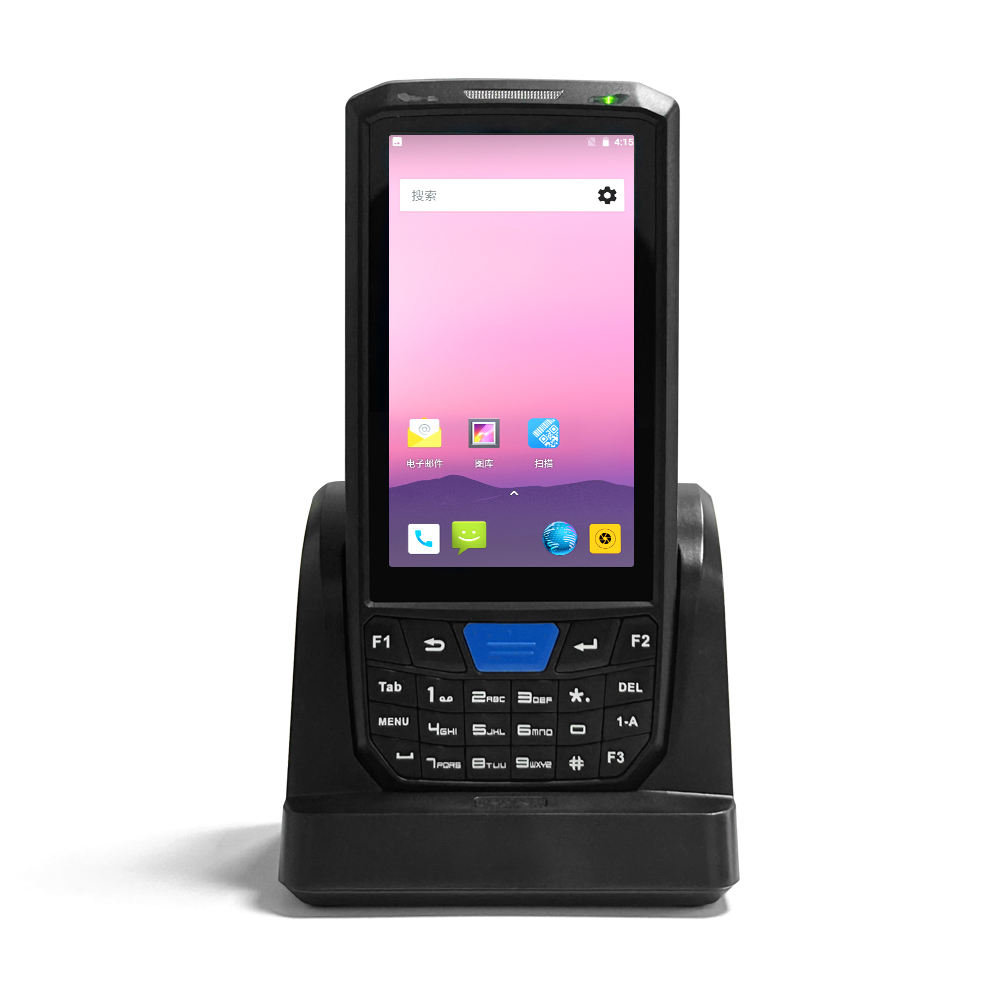

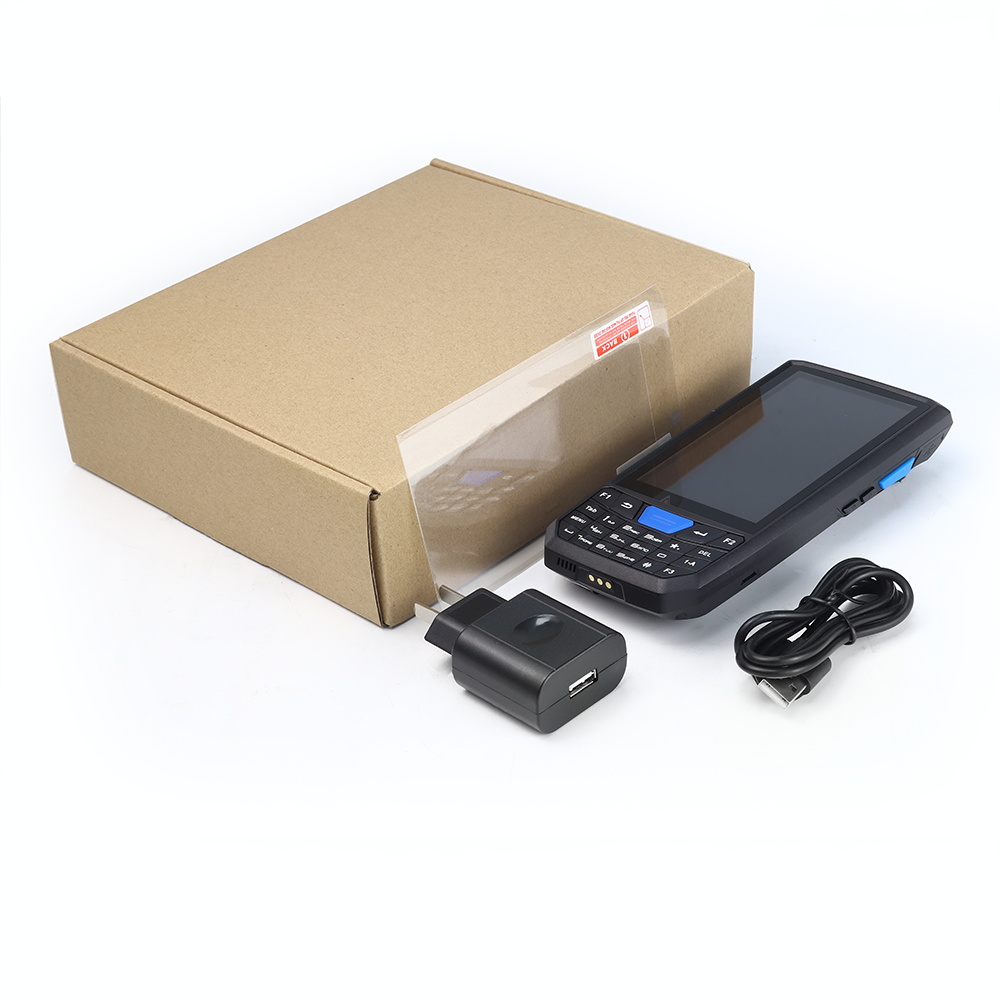

HS04 rugged handheld computer with charger

Handheld Mobile Computer Barocde Scanner

HS04 Handheld Computer Scanner

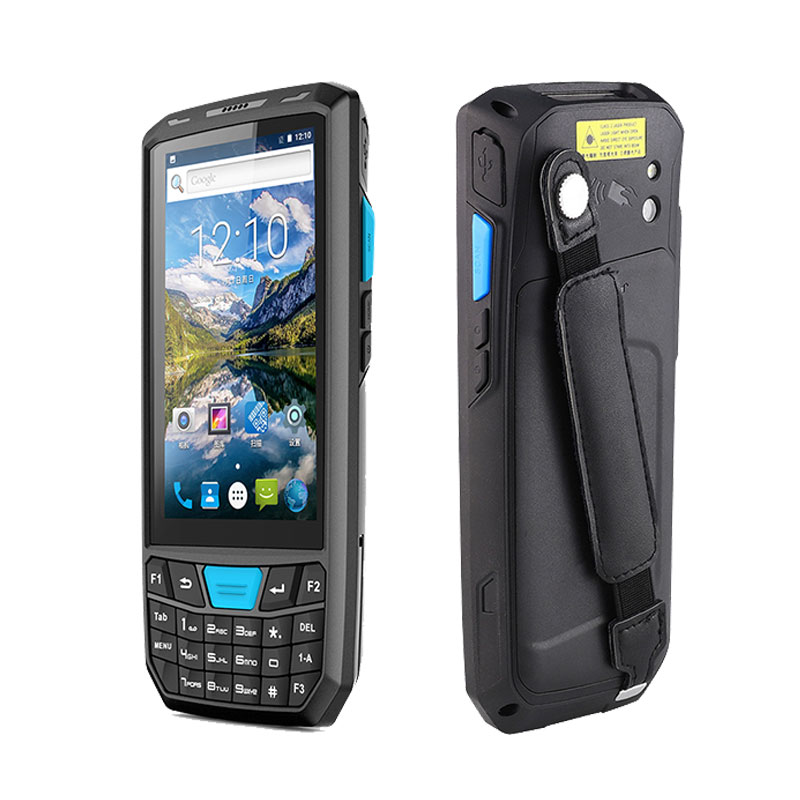

HS04 is a rugged Android handheld computer with a 4.5″ display and a physical keyboard for fast data entry.

Its enterprise 2D scanner captures barcodes instantly, while the removable battery keeps crews running across shifts. Ideal for warehouse picking, inventory counts, retail backroom, and field service.

OS:Android 13.0
MT6765 Octa-core 64-bit 2.3GHz
Connected: 2G/3G/4G, Wifi and Bluetooth 5.0
Display: 4.5 inch
Front Camera:None
Rear Camera:8MP

Barcode Scanner: Honeywell N6703 or other 2D Scanner
Memory:6+64GB
IP Grade:IP66
NFC:13.56 MHz

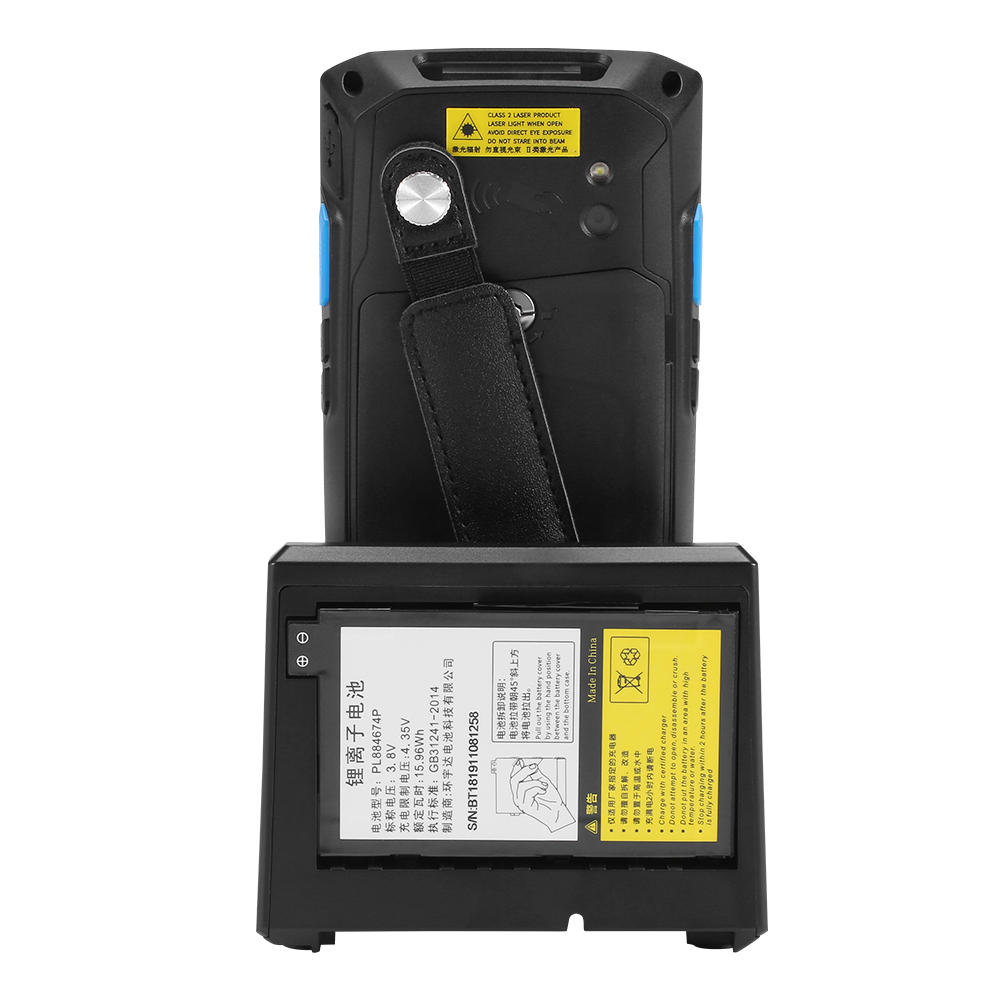

Battery: 4200mAh removable
Resolution: 480*854

Specification

Physical Characteristics

Communication

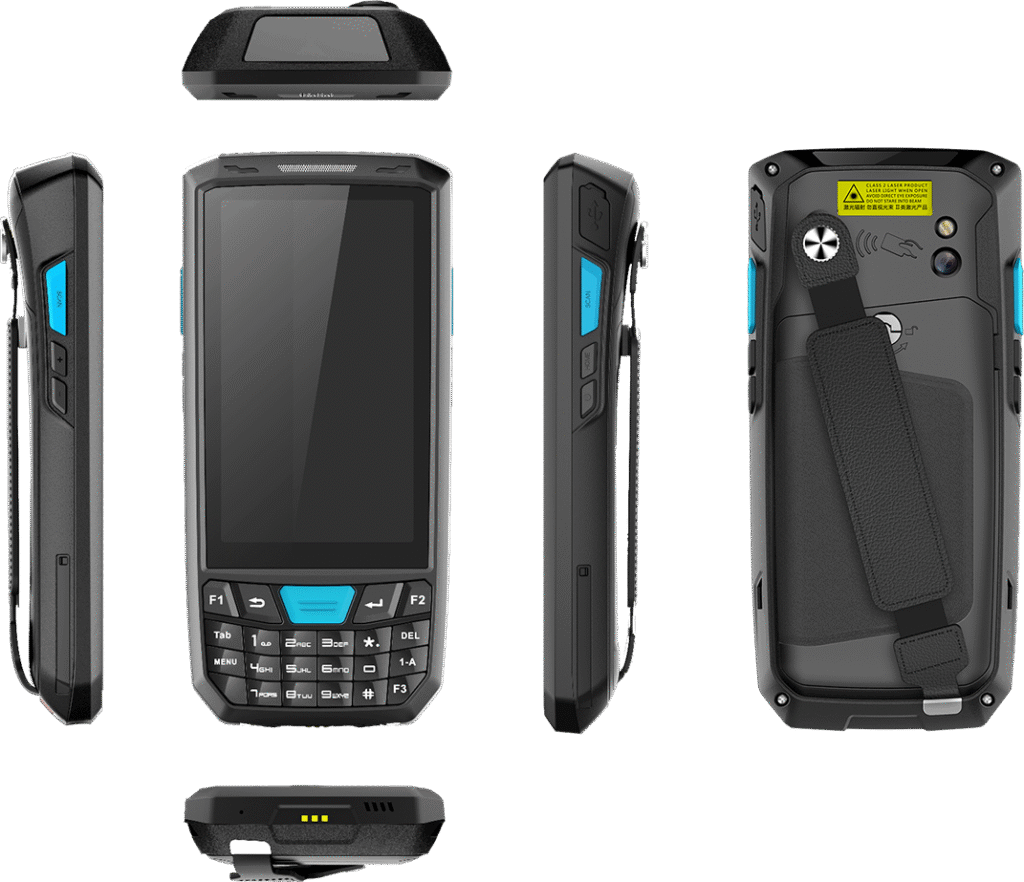

Dimensions	166mm×77.5mm×22mm
Weight	＜500g
Display	4.5 inch IPS color display with resolution 480*854
Screen brightness	＞500cd/m2

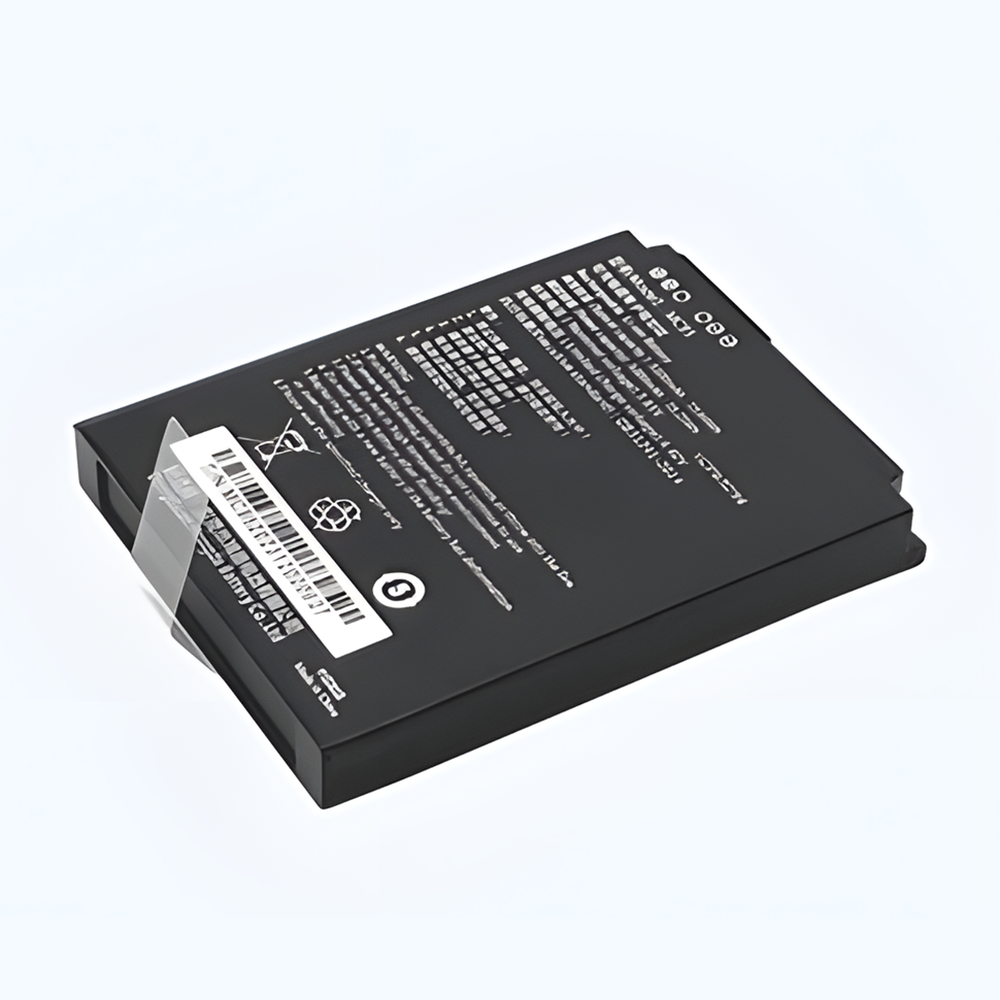

Battery capacity	Rechargeable polymer battery (3.8V 4200mAh) removable

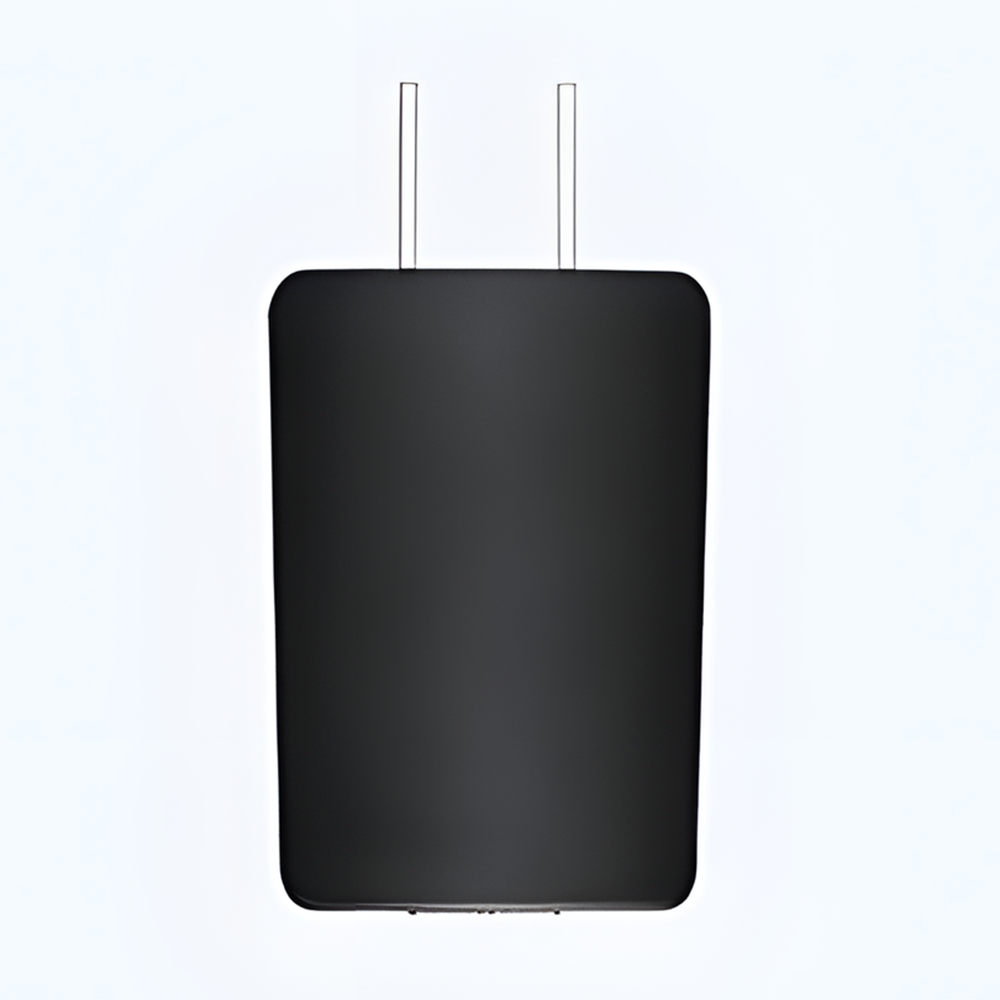

Charging time	Charging time < 4 hours, use standard power adapter and data cable
Expansion Card slot	Micro SIM card x 1 , TF card × 1
Communication interface	Type-C USB x 1, OTG,POGO Pin x 1
Keypad	Support touch screen soft keypad and physical keypad

WLAN	Dual-band 2.4GHz/5GHz, support IEEE 802.11ac/a/b/g/n/d/e/h/i/j/k/r/v protocol
WWAN	2G：GSM（850/900/1800/1900MHz）
WWAN	3G：WCDMA（850/900/1900/2100MHz）
WWAN	4G：FDD:B1/B3/B4/B7/B8/B12/B20
WWAN	TDD:B38/B39/B40/B41
Bluetooth	Bluetooth 5.0
Transmission distance	5-10 meters
GNSS	Support GPS, Galileo, Glonass, Beidou

Developing Environment

Performance

Operation System	Android 13
SDK	Yes, Support
Language	Java

CPU	MT6765 Octa-core 64-bit 2.3GHz
RAM+ROM	4GB+64GB
Expand memory	Micro SD(TF) Supports up to 128GB

User Environment

Barcode Scanning

Operating Temp.	-20℃ - 55℃
Storage Temp.	-40℃ - 70℃
Environment humidity	5%RH--95%RH(no condensation)
Drop specification	6 sides Supports 1.5 meters drops on the marble within the operating temperature
Rolling test	0.5m rolling for 6 sides, can still work steadily
Protection level	IP66

2D Scanner	N6602-W2/Honeywell 6703
1D Symbologies	UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS,etc. Postal Codes:USPS Planet, USPS Postnet, China Post, Korea Post, Australian Postal, Japan Postal, Dutch Postal (KIX), Royal Mail, Canadian Customs,etc.
2D Symbologies	PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, HanXi,etc.
