Fixed Mount Barcode Scanners
Customized 2D Fixed Mount Barcode Scanners Manufacturer for Kiosk Solution
Welcome to EFFON, where we recognize the pivotal role of embedded barcode devices in various industrial processes. As a dedicated manufacturer of embedded devices, we specialize in crafting bespoke solutions designed for flawless integration into self-service terminal systems. Our extensive expertise in this field has established us as a trusted partner for businesses in need of fixed mount barcode scanner solutions.

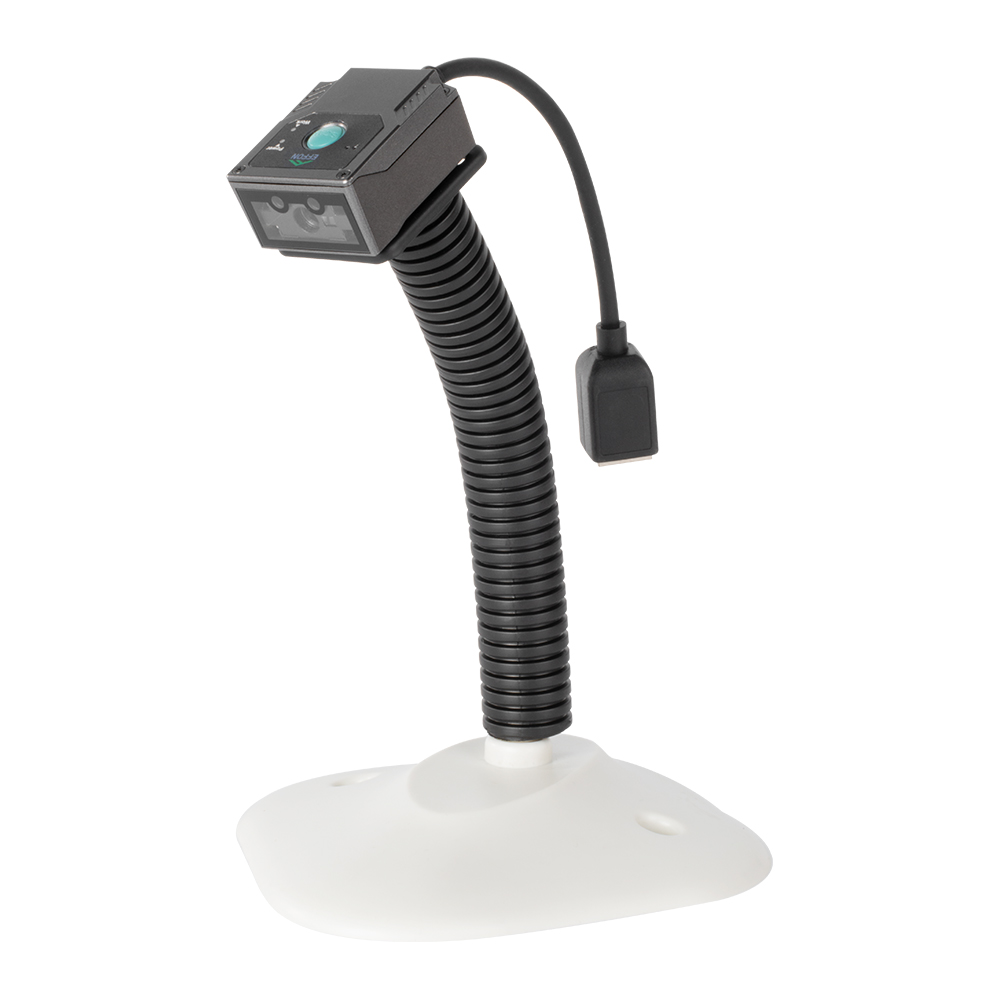

MS430 Fixed Mount Barcode Scanner
Weight:75g
Barcodes: 2D Scanner
Dimension:41.5mm×49.5mm×24.3mm
Sensor Pixels:1280x800
Communication: RS232, USB
Protection:IP54

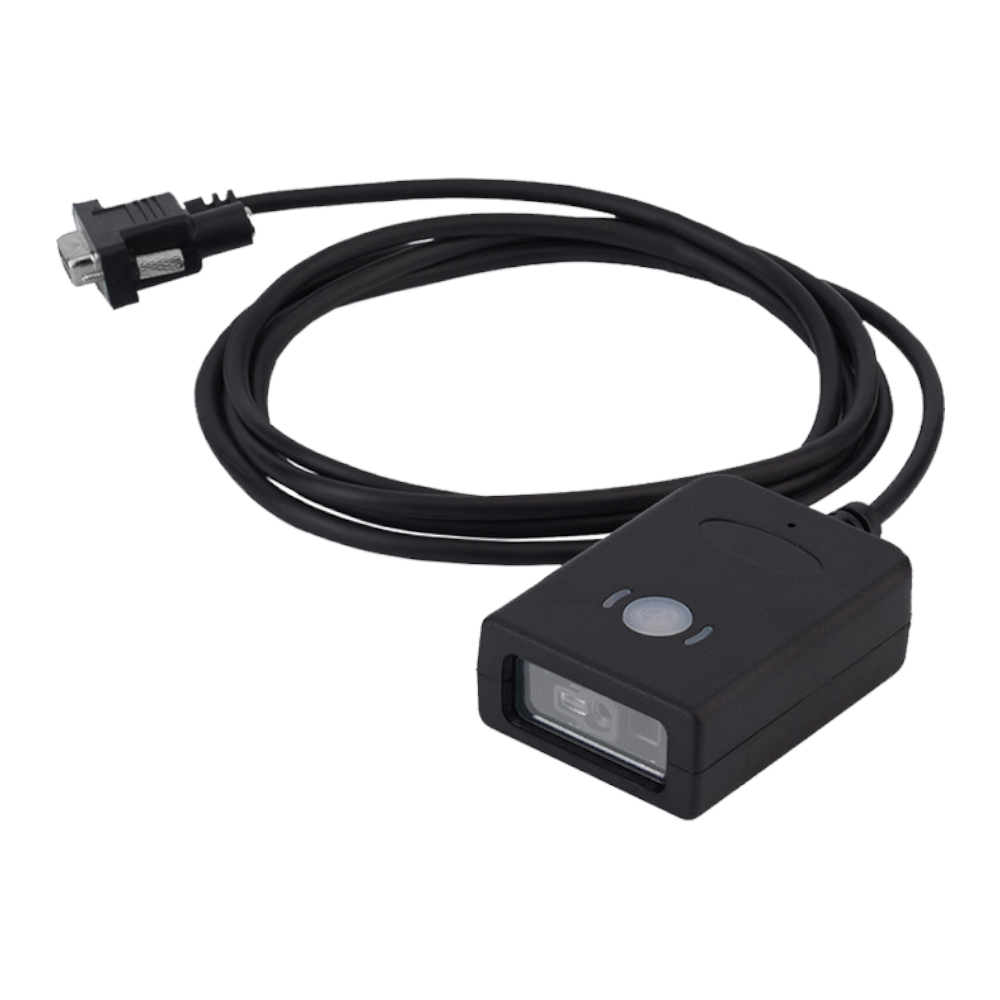

MS4100 Fixed Mount Barcode Scanner
Weight:150g
Barcodes: 2D Scanner
Dimension:70mm×23mm×50mm
Sensor Pixels:640x480
Communication: RS232, USB
Protection:None

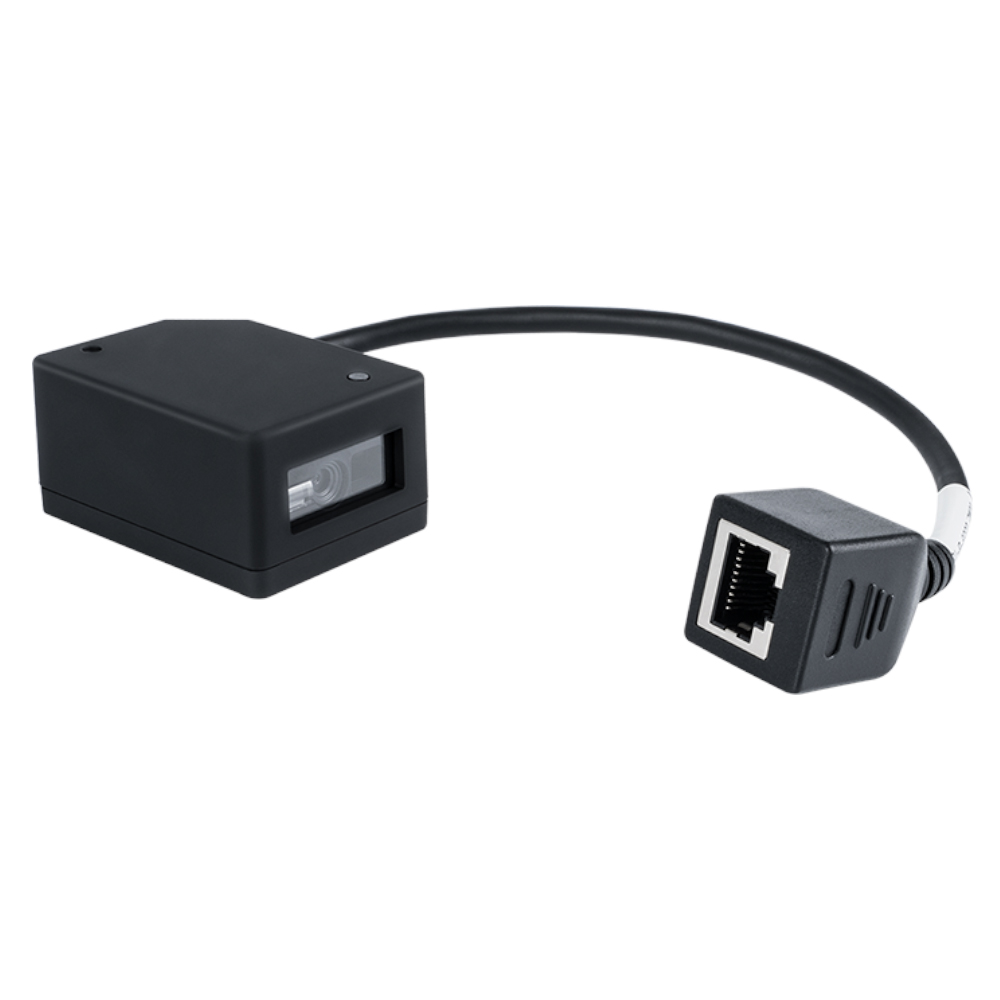

MS4200 Fixed Mount Barcode Scanner
Weight:37g
Barcodes: 2D Scanner
Dimension:49mm×38mm×20mm
Sensor Pixels:640x480
Communication: RS232, USB
Protection:None
MS7200 Fixed Mount Barcode Scanner
Weight:145g
Barcodes: 2D Scanner
Dimension:67mm×67mm×35mm
Sensor Pixels:640x480
Communication: RS232, USB
Protection:None

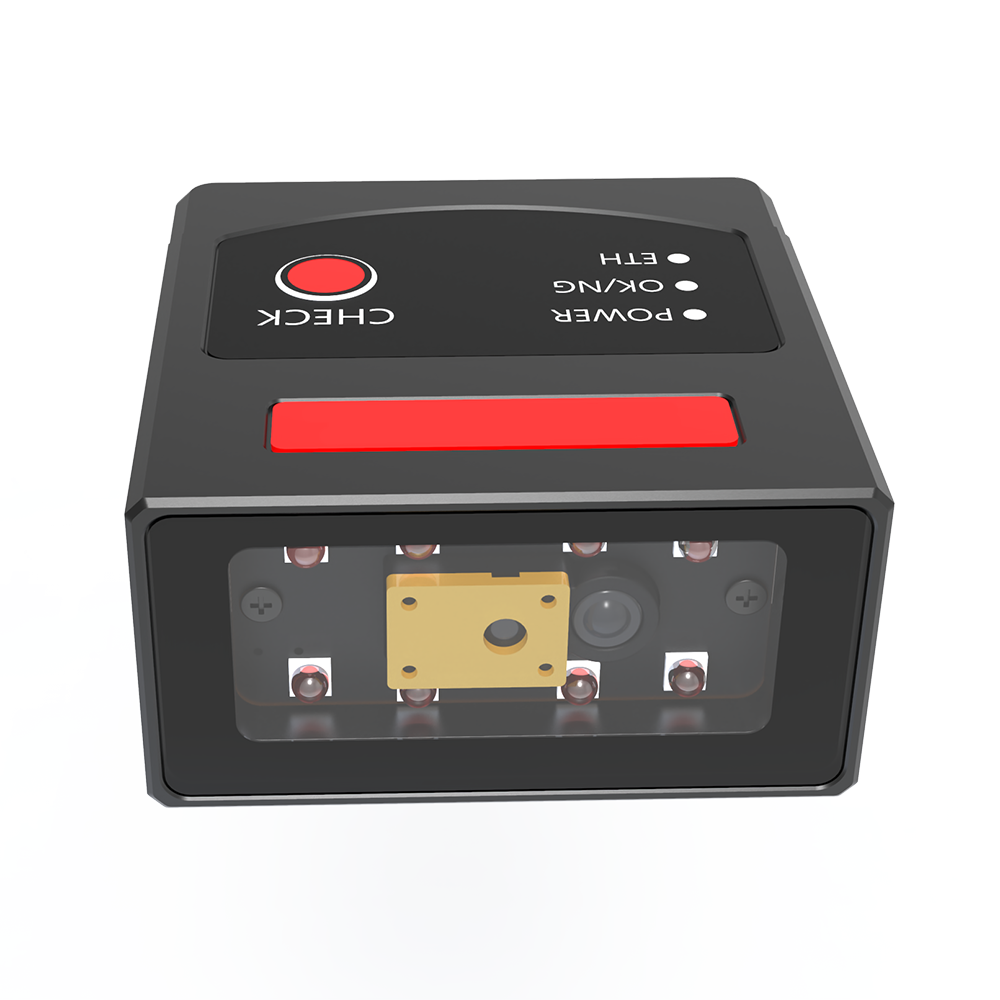

MS25 Industrial Fixed Mount Scanner
Weight:190g
Barcodes: 2D Scanner
Dimension:52.5mm x 27mm x 55mm
Sensor Pixels:1280x800, 60FPS
Communication: RS232, Ethernet
Protection:IP65
MS26 Industrial Fixed Mount Scanner
Weight:80g
Barcodes: 2D Scanner
Dimension:48mm x 45mm x 25mm
Sensor Pixels:1280x800
Communication: RS232, Ethernet
Protection:IP54
Contact EFFON today to elevate your self-service terminal system with our sophisticated scanning technology and bespoke customization services. Our solutions are customized to meet your specific requirements, ensuring your enterprise achieves optimal efficiency and reliability.
Comparasion
This comparison is designed to assist you in making an informed decision when purchasing a fixed mount scanner.
Model Name | MS430 | MS4100 | MS4200 | MS7200 |
---|---|---|---|---|
Dimension | 41.5×49.5×24.5 | 70mm x 23mm x 50mm | 49mm×38mm×20mm | 67mm x 67mm x 35mm |
Weight | 75g | 50g | 37g | 145.5g |
Current | 5 VDC±5% | 5 VDC +/-10% @400 mA | 5 VDC +/-10% @400 mA | 3.3-5 VDC 200MA |
Image PIxels | 1280x800 | 640x480 | 640x480 | 640x480 |
Light Source | Aiming:617 nmLED; illuminaon:6500KLED |
White LE(400nm~750nm) Green LED(510nm~540nm) |
Aiming:617 nm LED; illumination:6500K LED |
Illumination:6500K LED |
Interface Support | USB/RS232 | USB/RS232 | USB/RS232 | USB/RS232 |
Symbology | 1D: EAN13, EAN8, UPCA, UPCE, Code 128, Code 39, Codabar, UCC/EAN 128, RSS, Interleaved 25, ITF14, ITF6, Standard 25, Matrix 25, COOP 25,Industrial 25, Plessey, MSI Plessey, Code 11, Code 93, Code 49,Code 16K, etc. 2D: PDF417, QR Code, DataMatrix, AZTEC, Hanshin Code, Maxicode, Micro QR,Micro PDF417, GM , Code One, etc. |
1D:UPC,EAN,Code128, Code39,Code93, Code11,Matrix2of5, Interleaved2of5,Codabar, MSIPlessey,GS1DataBar, ChinaPostal,KoreanPostal,etc. 2D:PDF417,MicroPDF417, DataMatrix,Maxicode, QRCode,MicroQR, Aztec,Hanxin,etc. |
1D: UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc. 2D:PDF417, MicroPDF417, Composite Codes,Data Matrix, Maxicode, QR Code, MicroQR, Aztec | 1D: UPC, EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Codabar Interleaved 2 of 5, Mis Plessey, GSI DataBar, China Postal, Korean Postal , etc. 2D: PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec Hanxin, etc. |
Operating Temp | "-20℃~+60℃" | 0°C to 50°C | 0°C to 50°C | "-30°C to 70°C" |
Storage Temp | "-40℃~+70℃" | "-40℃~+70℃" | "-40℃~+70℃" | "-40℃~+70℃" |
Protection level | IP54 | / | / | IP54 |
Tailored Fixed Mount Barcode Scanners for Embedded Kiosk Solutions
With over 15 years of industry expertise, EFFON crafts products to meet industrial-grade standards. Our dedicated in-house R&D team is committed to meeting your unique requirements, ensuring that our embedded scanners for kiosk solutions are not only efficient and easy to integrate but also reliable for self-service applications.
Here’s a comprehensive breakdown of these customization options:
Our array of scanner sizes ensures a perfect fit for various kiosk designs without compromising aesthetics or functionality. All models are designed for simple installation.
Our scanners support multiple interfaces, including USB, serial, and Ethernet, to guarantee seamless compatibility with the existing systems within your self-service terminals.
We provide a comprehensive SDK to facilitate easy integration with self-service terminal software, ensuring smooth operation and management.
We customize the cable length of our fixed mount scanners to perfectly suit your project needs, ensuring optimal fit within the embedded self-service terminal equipment.
We offer a range of resolutions in our embedded devices—from high-resolution megapixel scanners to mid-range and entry-level options—ensuring there’s a model that meets your specific needs.
Feedback signals, such as beep volume or LED color, can be customized to align with the design and user interface of your self-service terminal, enhancing the user experience.
We are dedicated to delivering tailor-made fixed mount barcode scanners specifically designed for kiosk solutions, ensuring they meet the unique demands of your project.
Contact us today to explore how we can assist you in achieving optimal self-service management.
Why Opt for EFFON's Custom Fixed Mount Barcode Scanners?
EFFON excels in delivering superior fixed mount barcode scanners specifically designed for kiosk applications.
Leveraging years of industry experience, we specialize in developing advanced embedded device solutions that adhere to the highest standards of quality.
Choosing EFFON means benefiting from our commitment to excellence, ensuring each scanner delivers unmatched quality and performance.
Contact us today to experience the premium quality and service that set EFFON apart in the marketplace.
At EFFON, we cater to all order sizes with no minimum order quantity. Whether you require a single unit or a bulk order of 10,000, we efficiently meet your demands with the flexibility your business needs.
Achieve precise customization with EFFON. Our extensive selection of models in various sizes ensures that you will find the ideal scanner to meet your specific requirements.
Leverage EFFON's 15 years of specialized experience in the barcode scanner industry. We provide expert advice to help you choose and implement the best embedded barcode scanner solutions for your unique needs.
Opt for EFFON's fixed mount barcode scanners when you need both quality and affordability. We are committed to providing excellent products at competitive prices, distinguishing us in the market.
EFFON blends high-quality with cost-effectiveness. Our products are priced competitively, yet they meet stringent quality standards, offering you exceptional value.
EFFON stands out in the industry by offering a 2-year warranty period and cost-effective after-sales maintenance services. With us, you enjoy longer protection and lower maintenance costs compared to other companies, ensuring peace of mind for the future.
Frequently Asked Questions
We have assembled a list of frequently asked questions about Fixed Mount Barcode Scanners for your convenience.
If you have any further questions, please don’t hesitate to contact us.
Yes, our fixed mount scanners are capable of reading codes displayed on screens.
Yes, our embedded scanners can accurately read barcodes printed on glass bottles, including those that are partially damaged.
Absolutely, the setup is straightforward—just plug it in, and it’s ready to go.
Yes, it includes an auto-sense mode where the scanner remains in low power until it detects movement beneath it, then it activates fully for a few seconds to scan.
Our fixed mount scanners support USB, RS232, and Ethernet connections.
Yes, you can customize the cable length to fit your specific kiosk solution.
Yes, the scanner features two screw holes on the back, making it easy to secure inside a 3D printed case for convenient kiosk integration.
The scanner comes with a one-year warranty that covers manufacturing defects and malfunctions. We also provide comprehensive customer support and service repair options to handle any issues that may arise during use.
You can directly by contacting our sales team for bulk orders and pricing inquiries. We offer competitive pricing and customizable options for large-scale deployments.
Yes, we offer customized solutions to meet the specific needs of your business. Our customization options include software modification, hardware adaptation; customizing your brand logo and boot screen
Our PDAs are certified to meet international standards, ensuring safety, reliability, and performance. Key certifications include IP65 or higher for water and dust resistance, and various other compliance standards such as CE, FCC, and RoHS. These certifications affirm our commitment to providing quality and durable products.
The specific MOQ can vary depending on the product model and customization requirements. Please contact our sales team for detailed information regarding MOQs for the products you are interested in.
We accept several payment methods, including T/T (Bank Transfer), Credit card and paypal. For large orders, we can also discuss terms for partial advance payments followed by balance payments upon shipment. Our aim is to provide flexible payment options that align with our clients’ procurement processes.
We usually ship by DHL/FEDEX/UPS, it will take about a week to your place.
Comprehensive Guide to Purchasing Fixed Mount Barcode Scanners for Kiosk Solution
The applications of handheld Computer PDAs are incredibly diverse, including medical PDAs, logistics and courier-specific PDAs, high-frequency RFID smart handheld data terminals, industrial-grade PDAs, warehouse PDAs, and more. Choosing the right PDA is crucial for optimizing warehouse efficiency with various styles available.
Whether you are considering importing or purchasing handheld data terminal PDAs for project procurement or local wholesale distribution, this comprehensive guide aims to provide you with all the insights needed to make informed and thoughtful decisions.
Table of Contents
Chapter 1
What is a Fixed Mount Barcode Scanner?
A fixed-mount scanner is a barcode scanner engineered for stationary installation.
Its compact design allows for seamless integration into small spaces such as self-service terminals, turnstiles, and assembly lines.
Equipped with an induction mode, it automatically scans barcodes presented in front of it without any manual input, such as pressing a button, thereby enhancing efficiency and streamlining processes.
Opting for the appropriate fixed-mount scanner can significantly boost efficiency and cut costs.
Chapter 2
Features of Fixed Mount Barcode Scanners
Automatic Scanning
Fixed mount scanners continuously scan or activate when an item passes within their field of view, using sensors or triggers to automate the process. This feature is essential for high-throughput environments.
Hands-Free Operation
By enabling hands-free scanning, these devices allow operators to focus on other tasks, improving efficiency and reducing operational costs.
Durable for High-Use Environments
Designed to operate reliably in high-use environments, these scanners are ideal for 24/7 operations, ensuring continuous performance with minimal downtime.
Easy Integration
Fixed mount scanners typically come with multiple connectivity options, including USB, Ethernet, and wireless connections, allowing for easy integration with existing systems and networks.
High-Speed and High-Accuracy Scanning
Capable of scanning hundreds of barcodes per minute, fixed mount scanners are designed for high-speed, accurate data capture, which is crucial in industrial and retail settings.
Compact and Rugged Design
These scanners are compact, allowing for integration into small spaces such as kiosks, turnstiles, and assembly lines. They are also built to withstand harsh industrial environments, with resistance to dust, moisture, and mechanical shocks.
Chapter 3
Varieties of Fixed-Mount Barcode Scanner
Fixed-mount barcode scanners come in various types, each designed for specific applications and environments. Each type of fixed-mount scanner offers specific features that cater to the operational needs of different industries, ensuring efficient barcode scanning and process management.
Here are some common varieties and their typical uses:
1D Laser Scanners:
- Use: Best for scanning standard UPC/EAN barcodes. Commonly used in retail for point-of-sale systems and in industrial settings for tracking inventory.
- Environment: Effective in indoor conditions where direct barcode contact is possible.
2D Imagers:
- Use: Capable of reading both 1D and 2D barcodes from any orientation, including QR codes. Used in healthcare for patient tracking, medication management, and in mobile ticketing for events or transportation.
- Environment: Versatile for both indoor and outdoor use, as they can scan barcodes from screens and high-density labels.
Omnidirectional Scanners:
- Use: Scans barcodes from any angle, increasing throughput at retail checkouts and during large-scale ticket scanning at events.
- Environment: Ideal for high-traffic retail environments and entry points where quick scanning is required.
Rugged Industrial Scanners:
- Use: Designed for harsh environments, these scanners are used in manufacturing, warehousing, and outdoor logistics to track goods through extreme conditions.
- Environment: Built to withstand dust, moisture, and drops, making them suitable for outdoor and challenging industrial settings.
Presentation Scanners:
- Use: Sit on a counter and allow items to be passed in front of them, commonly used in retail for quick scanning of items at a checkout.
- Environment: Suitable for high-volume retail environments where speed is crucial.
Compact and Miniature Scanners:

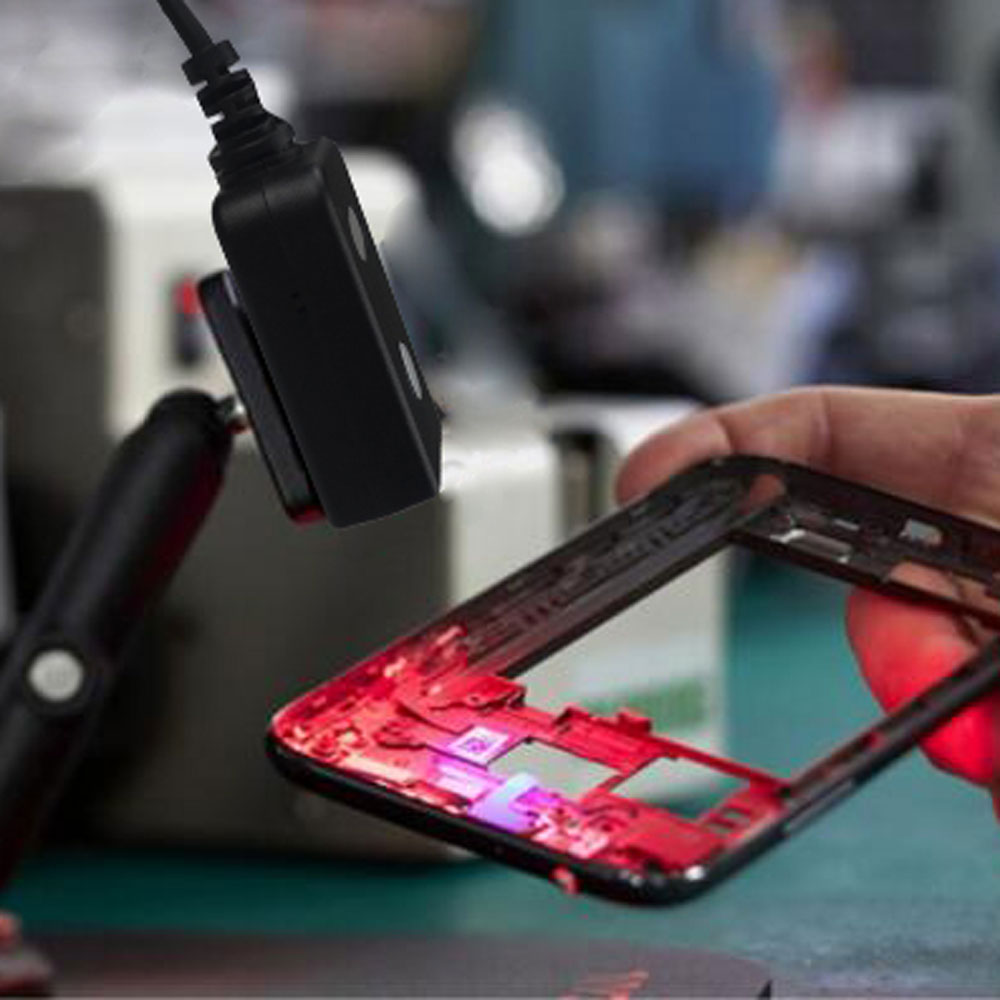

- Use: Ideal for integrating into small spaces like medical equipment, kiosks, and turnstiles for access control or self-service operations.
- Environment: Perfect for compact setups where space is at a premium and discrete integration is necessary.
Chapter 4
How to install the fixed mount barcode scanner?
Installing a fixed mount barcode scanner involves several methods that ensure the device is optimally positioned for hands-free or automated scanning operations. Here are the common installation options:
Brackets
Use brackets to securely attach the scanner to surfaces, providing a stable and fixed position that prevents movement during scanning.
Stands
Stands allow the scanner to be placed on a counter or other flat surfaces, offering flexibility in positioning and the ability to easily relocate the scanner as needed.
Kiosk Integration
Directly integrate the scanner into a kiosk setup to ensure seamless functionality. This is ideal for self-service terminals where space and aesthetics are important.
Mounting Kits
These kits contain all necessary hardware and instructions for mounting the scanner in various environments. They are designed to make installation straightforward, regardless of the location or surface type.
Chapter 5
Advantages of Fixed Mount Barcode Scanners
Fixed mount barcode scanners offer several advantages that make them indispensable in many industrial, retail, and logistical settings. Here’s an overview of the primary benefits:
1. Hands-Free Operation: These scanners allow hands-free operation, freeing up employees in manufacturing and packaging to focus on other tasks, thereby boosting productivity.
2. High Durability: Built to withstand harsh conditions, fixed mount scanners endure extreme environments like dust, moisture, and shocks, making them perfect for industrial use.
3. Versatility: Capable of reading barcodes from various angles and distances, and decoding both 1D and 2D barcodes, these scanners adapt to multiple sectors and applications, including retail, healthcare, manufacturing, and logistics.
4. Compact Design: With a small footprint, these scanners fit into tight spaces where handheld scanners can’t, ideal for kiosks, turnstiles, and machinery.
5. Improved Accuracy: Fixed mount scanners enhance data capture accuracy by reducing human errors associated with manual scanning, crucial for applications like medication dispensing and ticket validation.
6. Cost-Effective: The automation offered by fixed mount scanners reduces labor costs and minimizes errors, leading to significant long-term cost savings.
Chapter 6

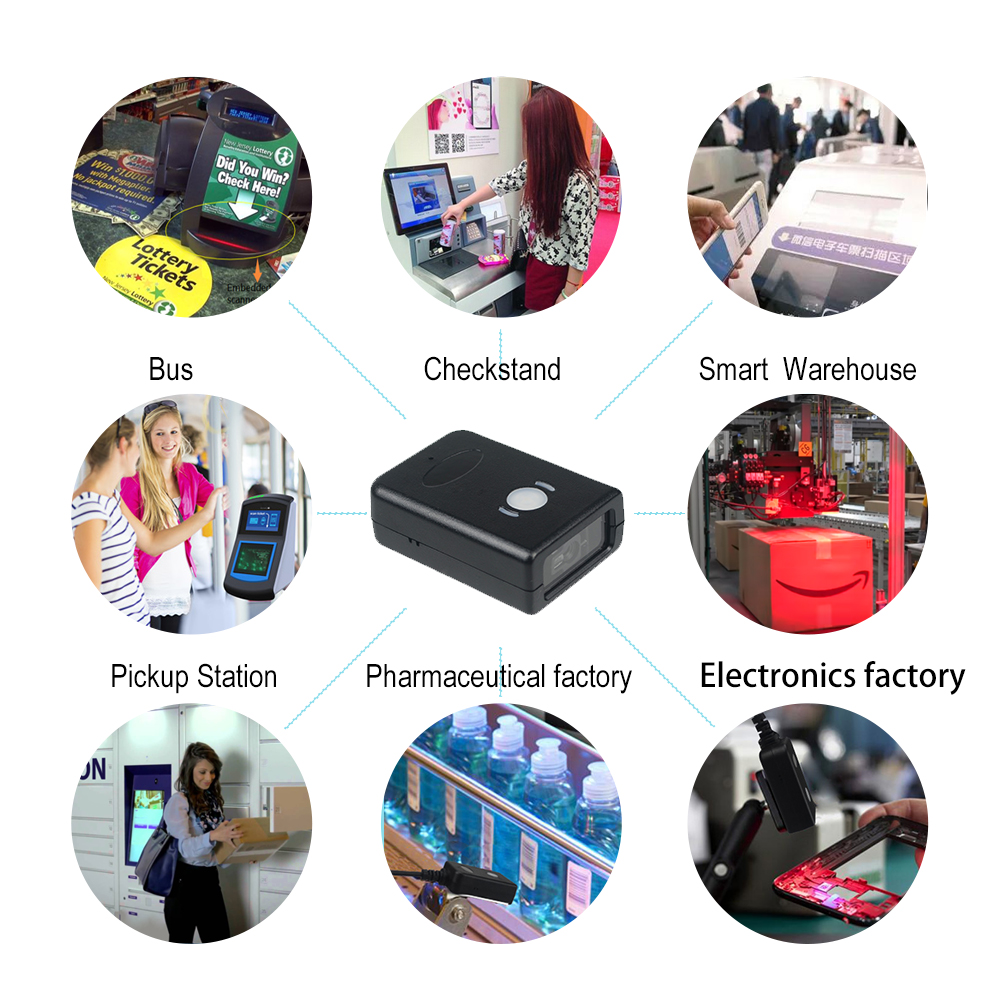

Application of the Fixed Mount Barcode Scanners

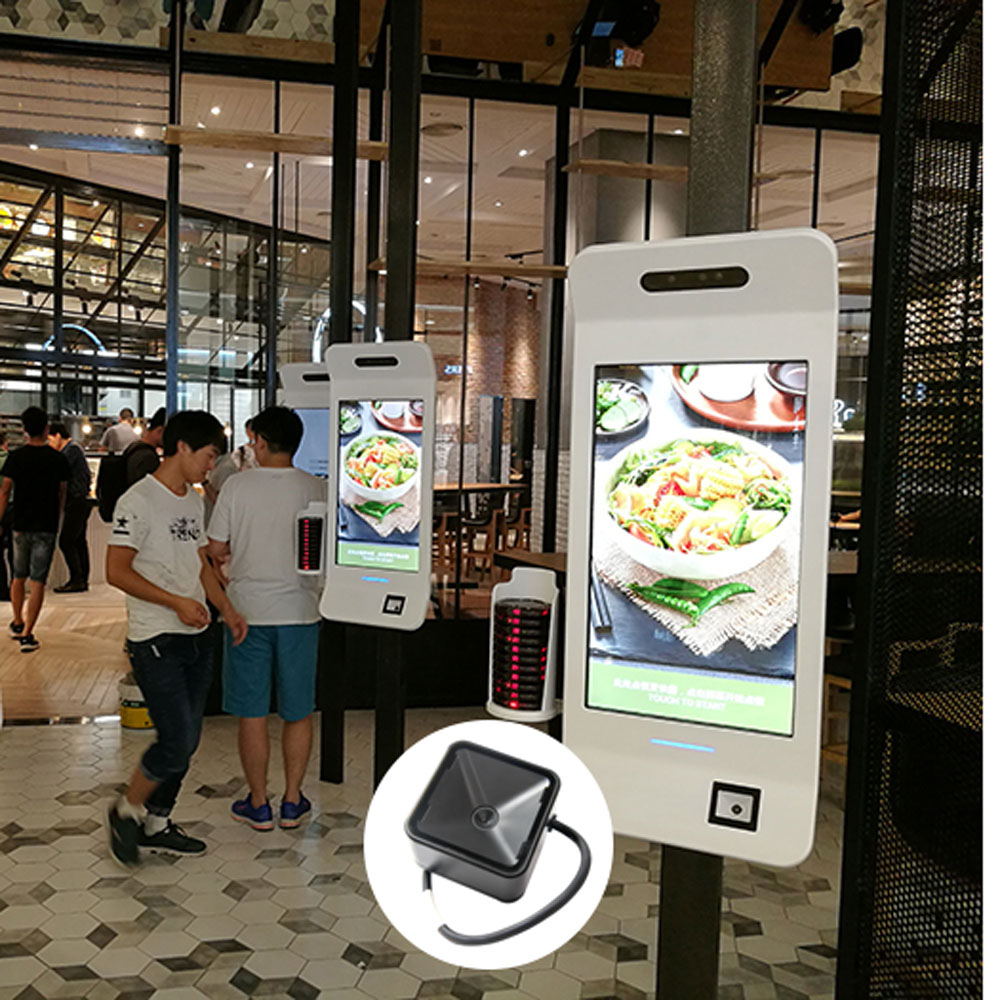

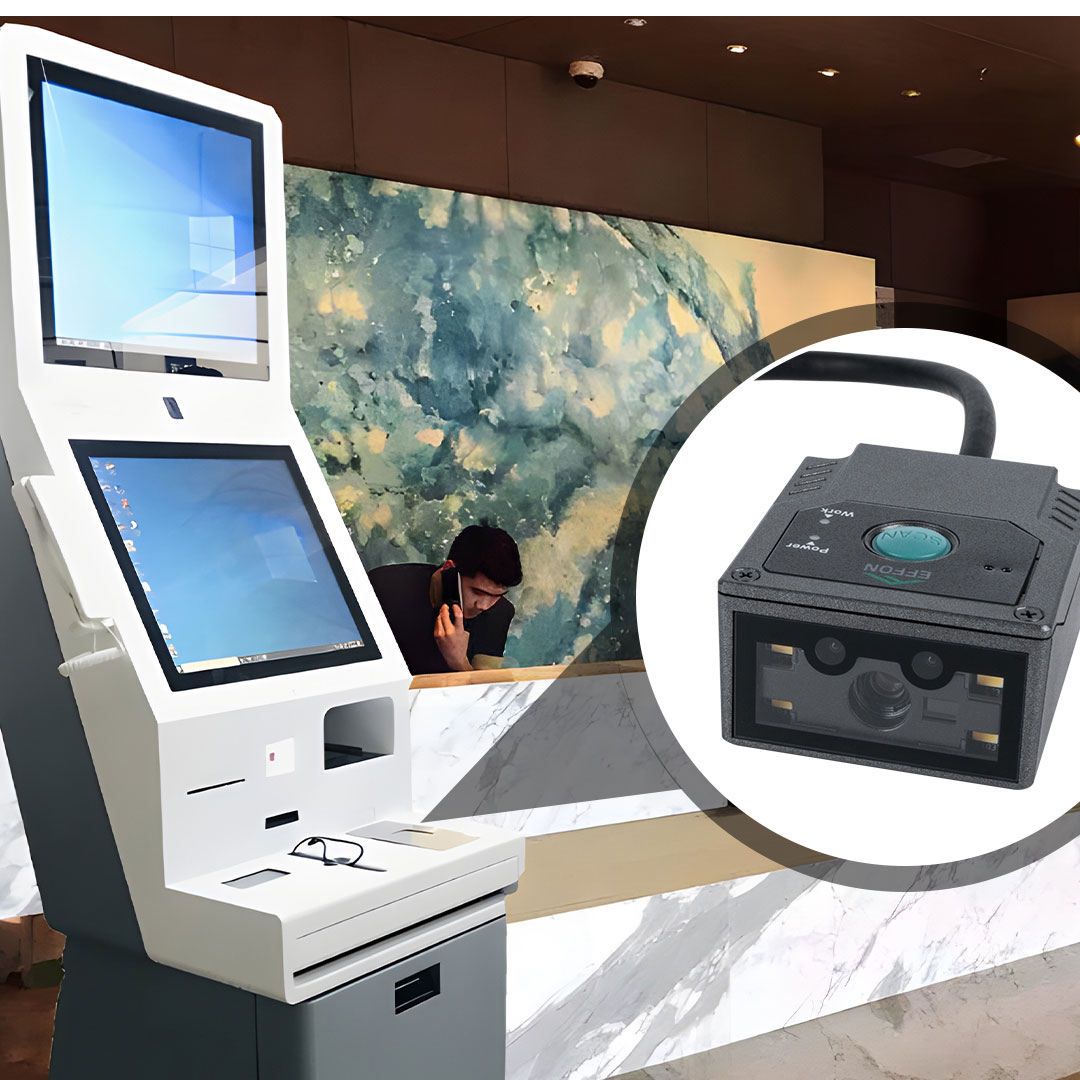

1. Kiosks Solution

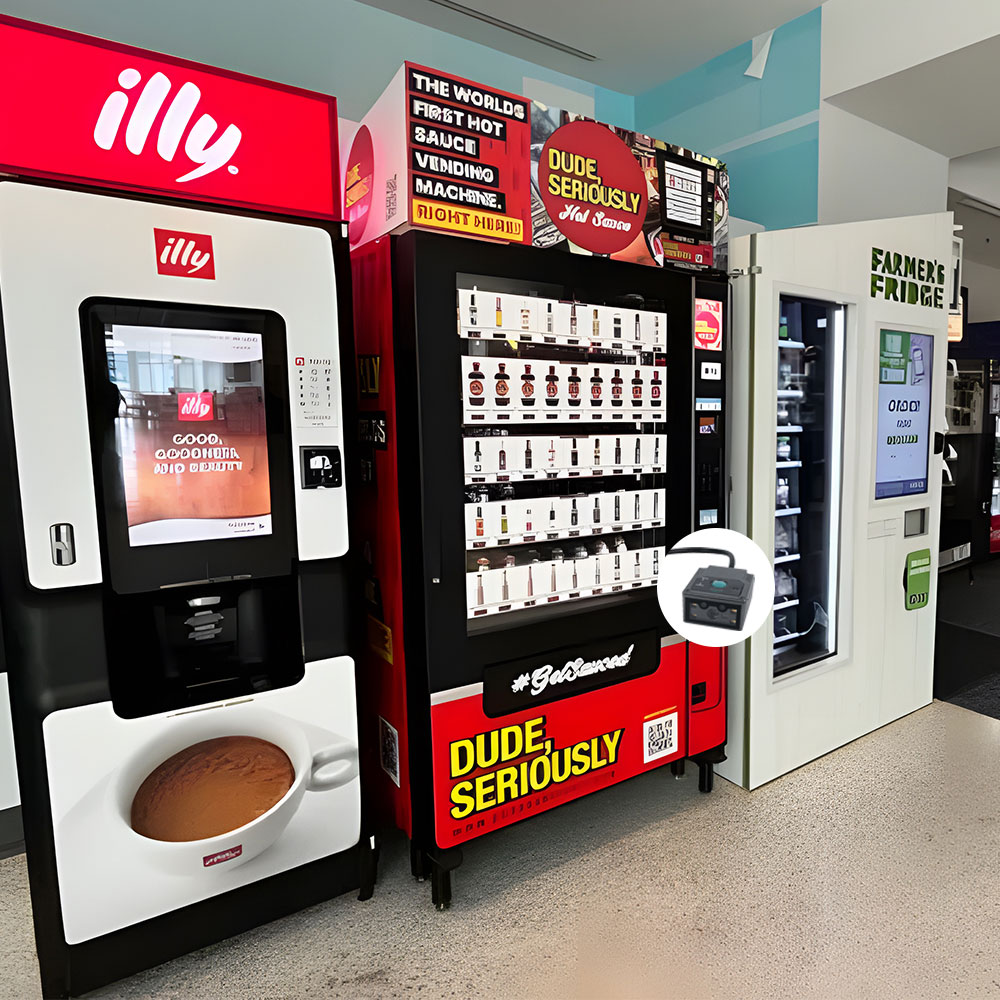

such as vending machines, are conveniently located in airports, high-speed rail stations, railway stations, and street-side locations. These automated systems enable customers to purchase drinks, food, and cigarettes effortlessly.

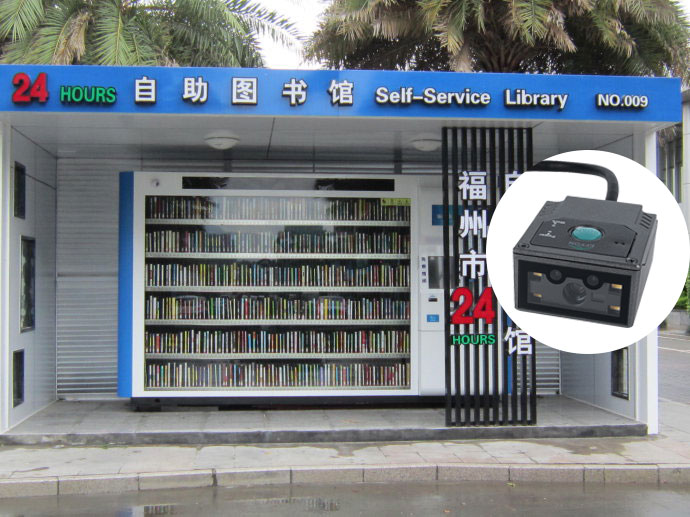

2. Self-Service Stations

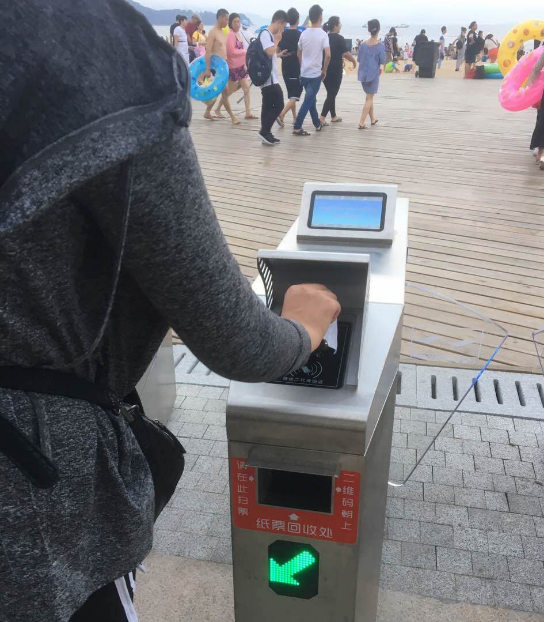

Fixed mount scanners are widely used in kiosks for ticketing, check-in, and payment services, allowing users to quickly scan tickets, boarding passes, or payment codes.
2. Manufacturing

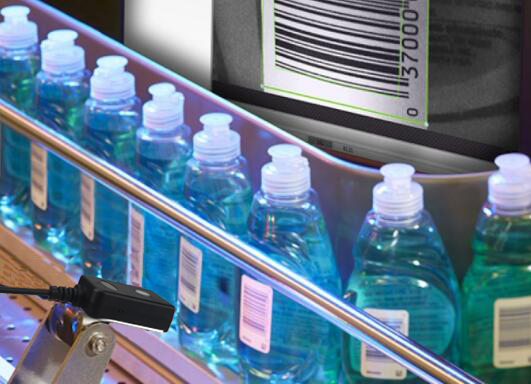

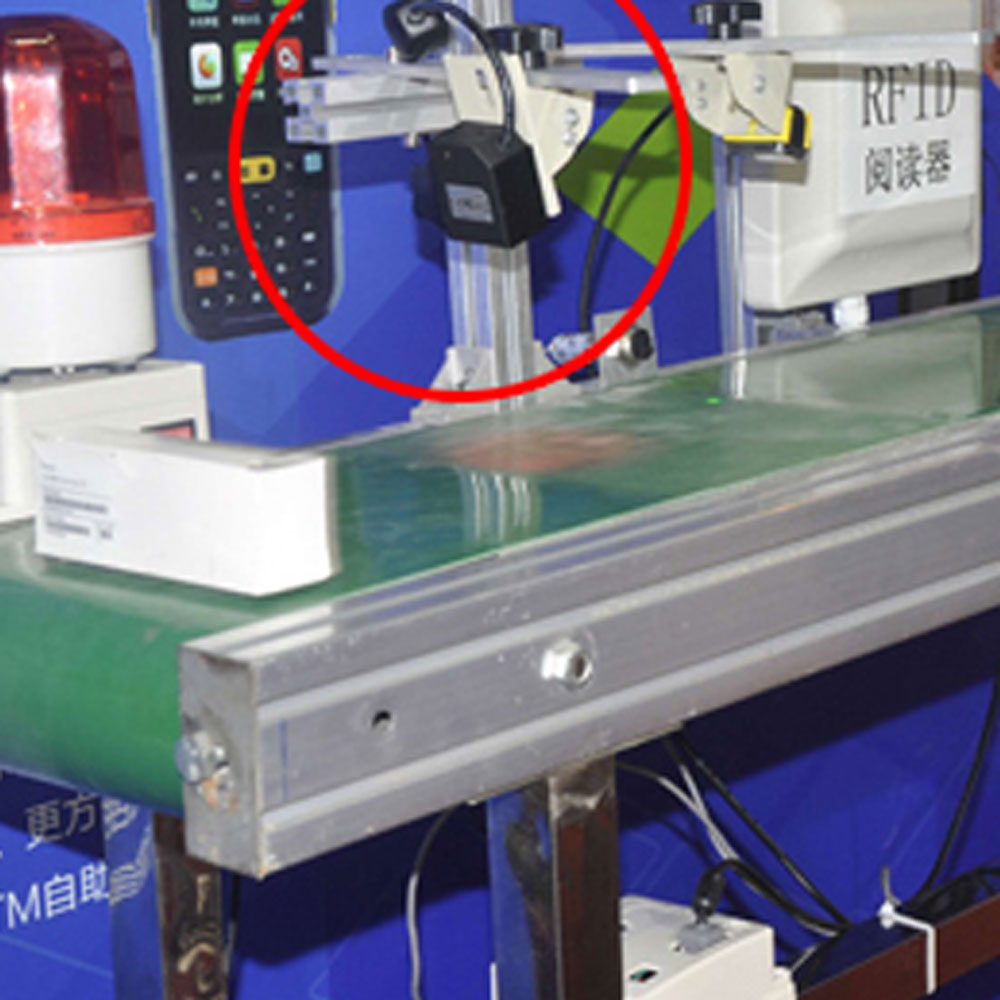

In manufacturing settings, these scanners can be used to track components along an assembly line, ensuring every piece is accounted for and processed correctly.

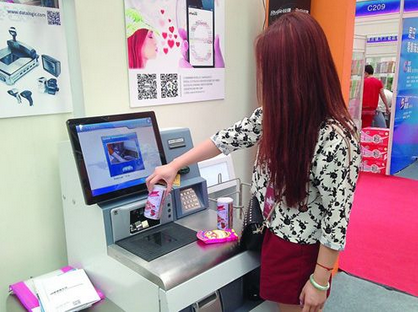

3. Retail
Fixed mount scanners are used at checkout counters or in self-checkout systems where they scan products quickly as they pass by the scanner, speeding up the checkout process.
4. Warehousing and Logistics
In warehousing, fixed mount scanners help track inventory as items are moved in and out of storage areas, improving efficiency and accuracy in logistics operations.

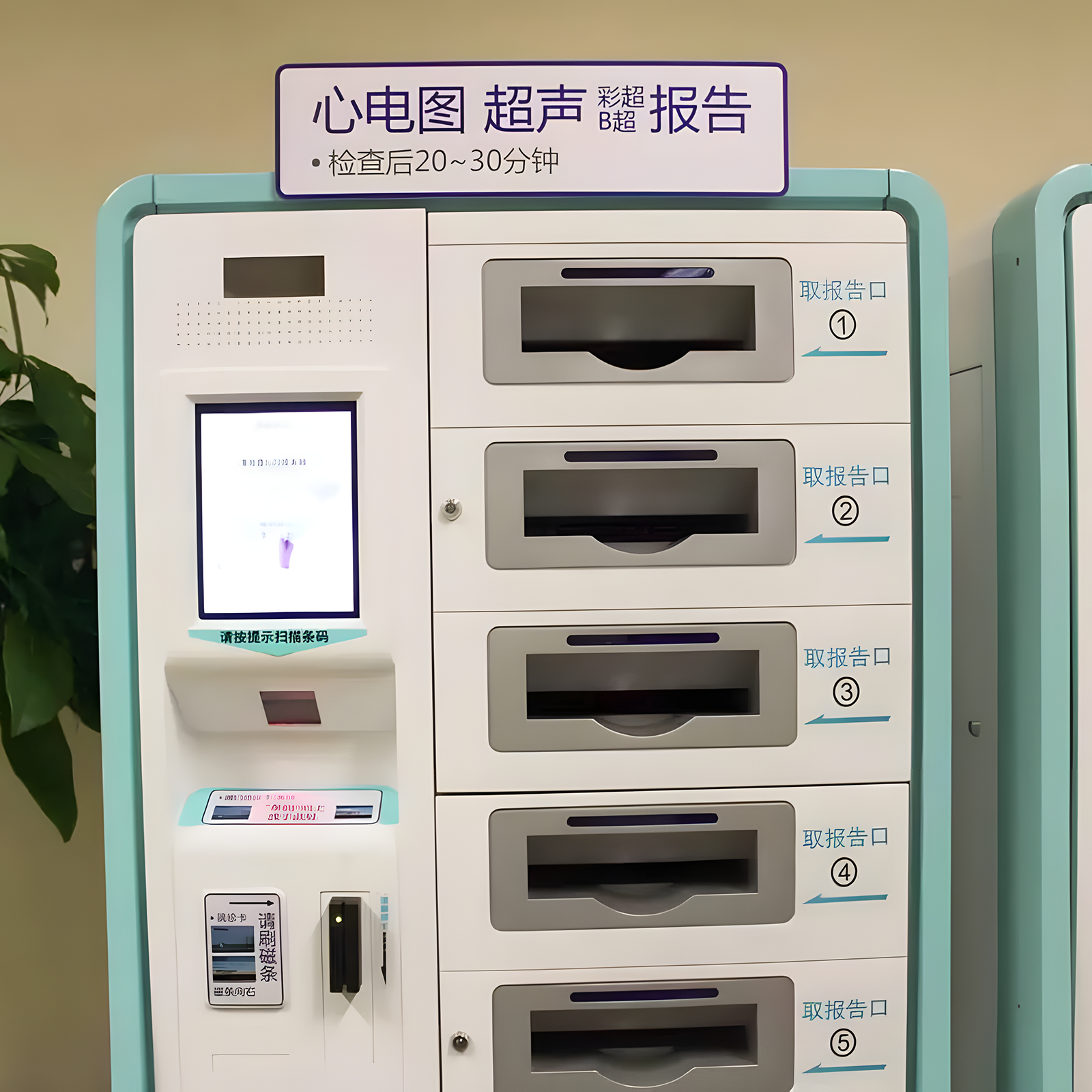

5. Medical and Laboratory Settings
These scanners help track specimens and medications by scanning barcodes, ensuring proper labeling and reducing errors in patient care.
6. Access Control

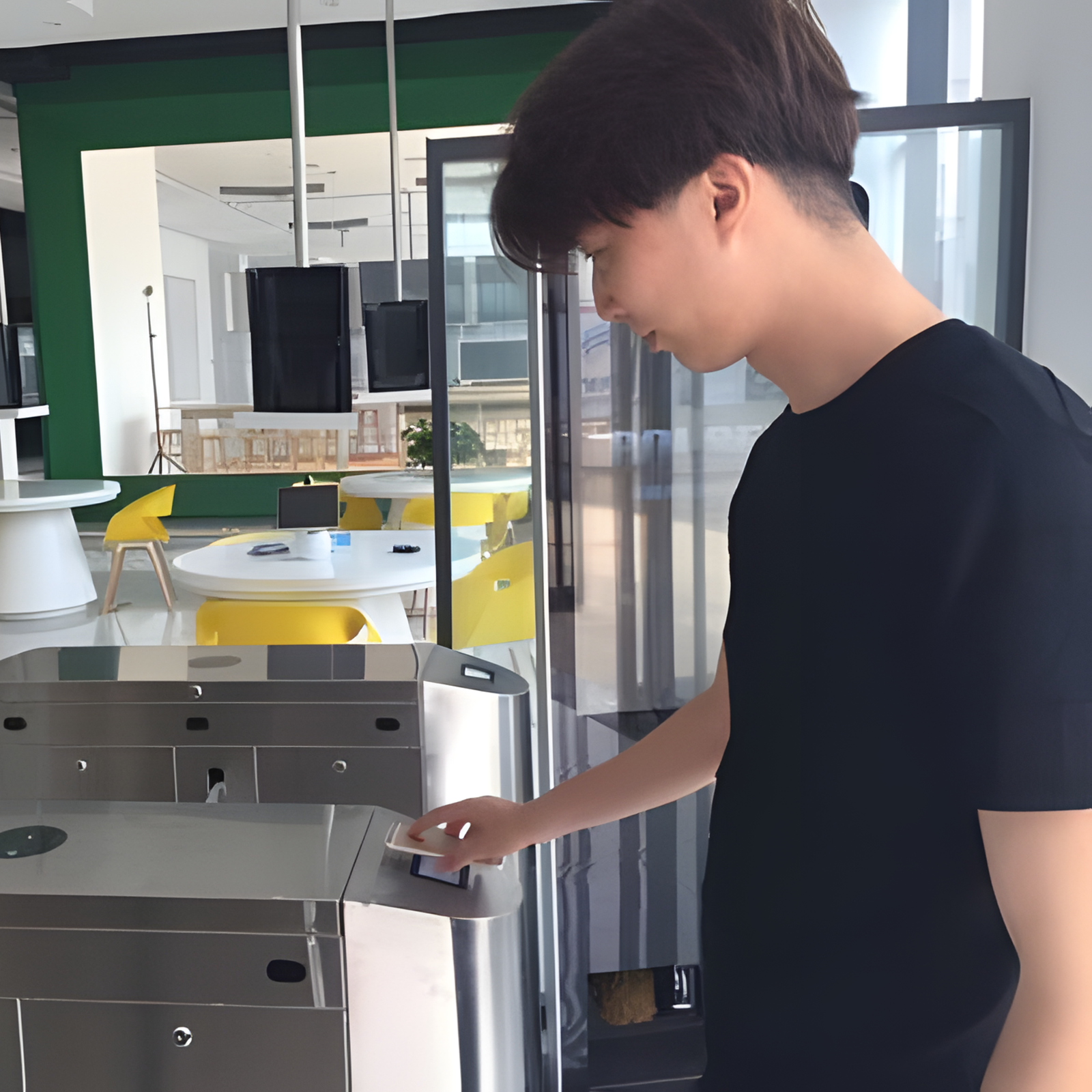

Used at entry points in secure facilities to scan IDs or passes, fixed mount scanners enhance security by verifying credentials automatically.
Chapter 7
How to Select the Right Fixed Mount Barcode Scanner?
Selecting the right fixed mount barcode scanner involves considering a variety of factors to ensure the scanner fits your specific needs and integrates seamlessly into your operation. Here’s a structured approach to choosing the appropriate scanner:
1. Assess Your Scanning Requirements
- Barcode Types: Determine if you need to scan 1D barcodes, 2D barcodes, or both.
- Scan Volume: Consider the volume of scanning—high traffic areas may need scanners with faster scan rates.
- Environment: Identify the environmental conditions the scanner will operate in (e.g., outdoor, industrial settings, exposure to chemicals, etc.).
2. Evaluate Integration Needs
- Physical Space: Measure the space where the scanner will be installed to ensure the scanner’s dimensions are compatible.
- Connectivity Options: Check the types of connectivity supported (USB, Ethernet, Wi-Fi, etc.) to ensure they match with your existing systems.
- Compatibility: Ensure the scanner is compatible with your current software systems, or if additional integration or software updates are needed.
3. Consider Operational Efficiency
- Ease of Use: Look for scanners that are easy to install and maintain.
- Hands-Free Operation: Opt for scanners that offer hands-free operation if efficiency is a priority.
- Reading Capability: Some scanners offer advanced reading capabilities like reading barcodes from screens or scanning damaged barcodes.
4. Look for Durability and Reliability
- Ruggedness: If the scanner is to be used in harsh environments, it should have the necessary durability ratings (e.g., IP ratings for dust and water resistance).
- Maintenance: Understand the maintenance requirements and the ease of obtaining spare parts or service.
5. Check for Customization and Scalability
- Custom Features: Some suppliers offer customizable features such as adjustable read ranges, customizable feedback, or the ability to add lenses for different scanning distances.
- Scalability: Consider if the scanner can scale with your business needs, especially if you expect changes in volume or types of barcodes being scanned.
6. Budget and Cost Considerations
- Initial Cost: Compare the upfront costs of different scanners.
- Total Cost of Ownership: Include maintenance, service, and potential downtime costs in your evaluation.
7. Vendor Reputation and Support
- Vendor Support: Look for vendors who provide reliable customer service and technical support.
- Warranty and Service Agreements: Evaluate the warranty period and what it covers; consider if extended warranties or service agreements are available.
By carefully assessing these factors, you can choose a fixed mount barcode scanner that not only meets your immediate needs but also adapts to future demands, ensuring a long-term, cost-effective solution for your scanning requirements.
Chapter 8
How to Choose a Reliable Fixed Mount Barcode Scanner Supplier?
Selecting a dependable fixed-mount barcode scanner supplier is critical to ensure high-quality products and superior service. Here’s a streamlined guide to assist you in choosing the ideal supplier for your needs:
1. Industry Experience
Choose suppliers with extensive fixed-mount scanner industry experience.
2. Product Diversity
Ensure the supplier offers a variety of scanner types (such as laser, 2D) and sizes (including fixed, embedded, and wall-mounted) to suit your specific needs.
3. Customization Capabilities
Check if the supplier provides customization services to tailor products to your specific requirements, such as custom sizes and interface types.
4. Budget Considerations
Select a supplier that fits within your budget constraints.
5. Technical Support
Look for suppliers that offer strong post-sale support, including technical assistance for integration and troubleshooting.
6.Expert Advice
Consult experts in the fixed-mount scanner field for advice tailored to your specific projects. They can provide insights based on their expertise and experience.
7. Delivery Capabilities
Ensure the supplier has a reliable and timely delivery record. It's very important for you to receive the goods in time.
8. Certifications
Verify that the scanners meet necessary industry standards and have relevant certifications (e.g., ISO, IP rating, drop tests).
Chapter 9
Why Choose EFRON's Handheld Mobile Computer?
Discover the exceptional advantages and performance of EFFON’s Android Handheld Computers, designed specifically to enhance warehouse supply chain efficiency.
Our dedication to quality and innovation guarantees that each handheld PDA we offer is more than just a product—it’s a comprehensive solution. With unmatched durability, precise scanning accuracy, and rapid decoding speed, our devices are tailored to meet the rigorous demands of your applications.
Top Quality Materials: EFFON provides top-tier quality in every handheld computer, ensuring that each device you receive is built with rugged durability. Our commitment to using the best materials guarantees that our devices can withstand the demanding conditions of warehouse environments.
- Customized Service: We understand that every warehouse has unique needs. EFFON offers customized services, allowing you to tailor features such as software, scanning capabilities, and connectivity options to fit your specific operational requirements perfectly.
- Advanced Barcode Scanning Technology: Our handheld computers are equipped with zebra and Honeywell state-of-the-art barcode scanning technology. This ensures high-speed and accurate reading of 1D and 2D barcodes, facilitating seamless inventory management and reducing errors in warehouse operations.
- Reliable After-Sales Support: Choosing EFFON ensures not just quality products but also reliable after-sales support. We provide comprehensive warranties, responsive customer service, and technical support to address any issues promptly and keep your operations running smoothly.
Chapter 10
Conclusion
In summary, selecting a reliable fixed-mount scanner supplier involves assessing their industry experience, the diversity of their product range, adherence to quality standards, availability of customization options, the extent of technical support, robustness of testing procedures, consistency of timely deliveries, cost-effectiveness, and comprehensive after-sales support.
By thoroughly evaluating these criteria, you can collaborate with a supplier that effectively contributes to the success of your kiosk solutions project.
Tailor Your Kiosk Solutions with EFFON's Customizable Fixed Mount Scanners
Experience the advantage with EFFON’s fixed mount scanners today. Elevate your kiosk solutions with our robust, precise, and customized scanning technology.
Contact us now to discover our range of fixed mount barcode scanners products and learn how we can help enhance your operations.
Get in Touch With Us!
REPLY WITHIN 24 HOURS
