EF02 Wearable ScannerRobust Enterprise-Grade
The EF02 Bluetooth Wearable scanner is crafted to empower your enterprise, providing your front-line workers with a robust tool designed to enhance their performance. It’s not just about doing the job; it’s about excelling at it. With built-in intelligence and unparalleled scanning capabilities, this device equips your workforce to achieve more.

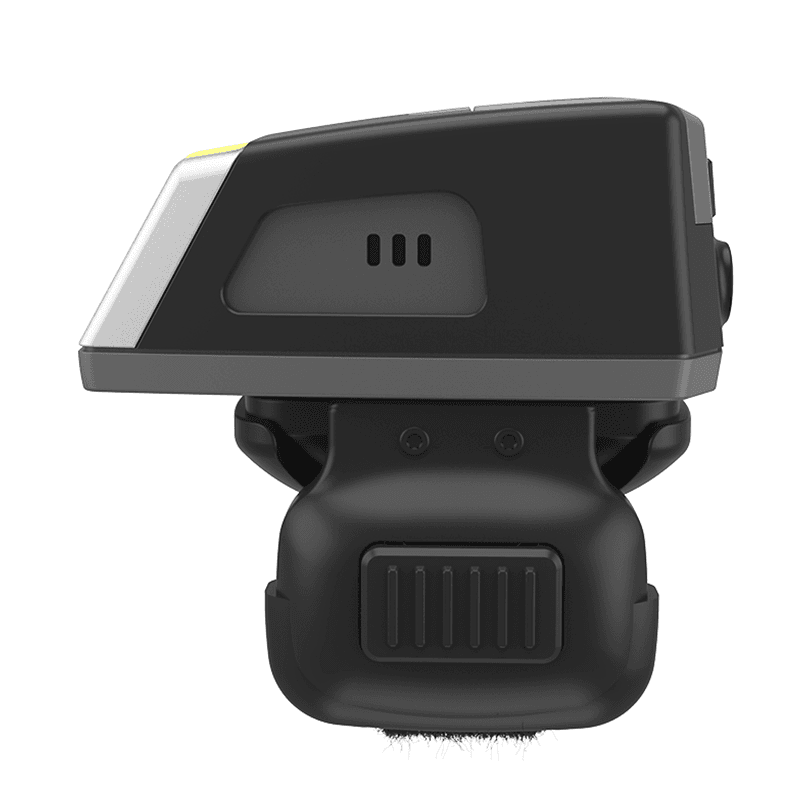

Front
Left

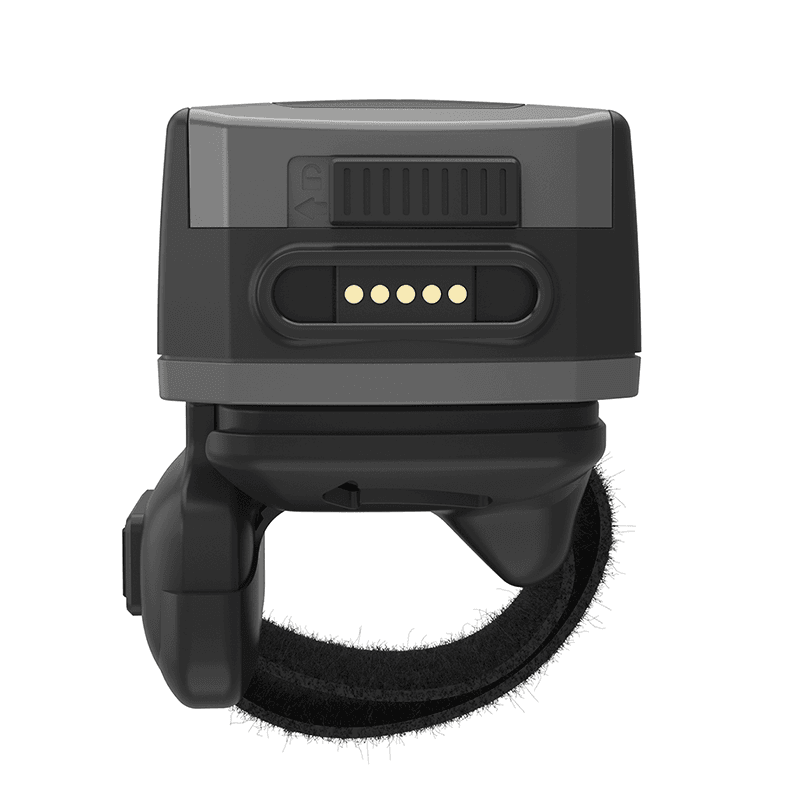

Rear
Right

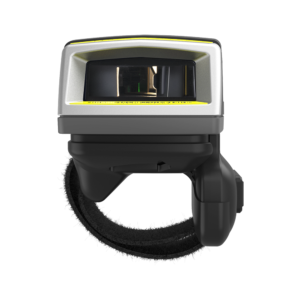

EF02 1D Laser Wearable Scanner
The EF02 Wearable Scanner is equipped with the Zebra SE965 1D laser scan engine, renowned for its superior scanning efficiency, expansive range, versatile application adaptability, and steadfast reliability and robustness. Its adaptive scanning technology, coupled with vigorous scanning capabilities and an extensive operational range, synergistically contribute to swift and precise barcode scanning that enhances worker productivity.
Front Side

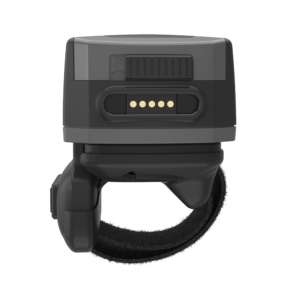

Back Side
Zebra SE965 1D Laser
1D only
Bluetooth
(scan engine: scan range of 10-50cm; depend on barcodes size)
5 Second fast per scan, up to 7100 scan, support 9.8 hours
-10°C to 60°C

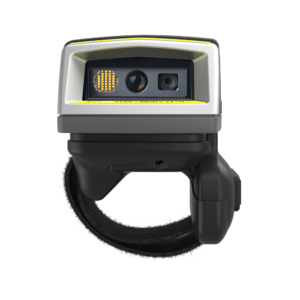

EF02 2D Wearable Scanner
The EF02 is integrated with the Zebra SE4107 2D CCD scan engine, featuring green light aiming to support comprehensive scanning of major 1D and 2D barcodes, including QR codes, Data Matrix, PDF 417, as well as specialized formats like FedEx, USPS, and VIN codes. This scanner excels in capturing barcodes from various media, not just printed materials but also digital screens, ensuring versatility and reliability in diverse scanning scenarios.
Front Side
Back SIde
Illumination：1 warm white LED
Zebra SE4107 2D Scan engine
Most 1D and 2D barcodes
Bluetooth
(scan engine: scan range of 25-30cm;depend on barcodes size)
5 Second fast per scan, up to 5111 scan, support 7.1 hours
-5°C to 50°C
EF02 2D Wearable Scanner
The EF02 incorporates the Zebra SE4750MR 2D scan engine, providing unmatched scanning performance across a wide array of data types. This includes all common 1D and 2D barcodes, as well as full images and documents of various sizes such as letter, legal, A4, and A5. The SE4750 Mid-Range model further enhances the device’s utility by extending its operational range up to 20 feet or 6 meters, ensuring superior scanning capabilities even at considerable distances.
Front Side
Back Side
Zebra SE4750MR 2D Scan engine
Most 1D and 2D barcodes
Bluetooth
(scan engine: scan range of 30-250cm; depend on barcodes size)
5 Second fast per scan, up to 4750 scan, support 6.2 hours
0°C to 50°C
EF02 2D Wearable Scanner
The EF02 incorporates the Zebra SE4750MR 2D scan engine, providing unmatched scanning performance across a wide array of data types. This includes all common 1D and 2D barcodes, as well as full images and documents of various sizes such as letter, legal, A4, and A5. The SE4750 Mid-Range model further enhances the device’s utility by extending its operational range up to 20 feet or 6 meters, ensuring superior scanning capabilities even at considerable distances.
Front Side
Back Side
Illumination: 2 Warm-White LED

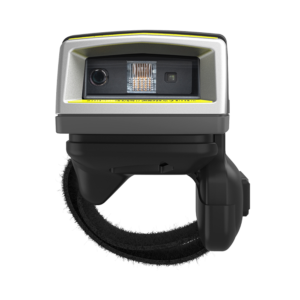

Zebra SE5500 2D Scan engine
Most 1D and 2D barcodes
Bluetooth
(scan engine: scan range of 16.2 in./41.1 cm to 270 in./685.8 cm; depend on barcodes size)
5 Second fast per scan, up to 4000 scan, support 5.5 hours
-5°C to 50°C
EF02 2D Wearable Scanner
The EF02 is equipped with the Newland E3P 2D scan engine, tailored specifically for logistics applications with a focus on decoding standard barcodes such as Code 128 and Code 39. However, it is important to note that this scan engine is not optimized for reading barcodes with very fine details, such as those with 3 mil or 5 mil sizes.
Front Side
Back Side
Illumination: 2 Warm-White LED
Newland E3P 2D Scan engine
Most 1D and 2D barcodes
Bluetooth
(scan engine: scan range of 30-250cm; depend on barcodes size)
5 Second fast per scan, up to 7524 scan, support 10.4 hours
-10°C to 50°C
EF02 Wearable Scanner Compare
| Items | EF02 SE965 | EF02 SE4107 | EF02 SE4750MR | EF02 SE5500 | EF02 E3P |
|---|---|---|---|---|---|
| Scan engine | Zebra SE965 1D Laser | Zebra SE4107 2D | Zebra SE4750MR 2D | Zebra SE5500 2D | Newland E3P |
| Range | Mid-range 10 to 50CM/ 3.93in to 19.69in | Mid-Range 25 to 30CM/ 9.85in to 11.8in | Mid-Rage 30 to 250CM/ 11.8in to 98.4in | Long- range 41 to 685CM/ 16.2in to 270in | Mid-Range 30 to 250CM/ 11.8in to 98.4in |
| Battery/Scan | 7100 scans/ 9.8 working hours 2 hours charging time | 5111 scans/ 7.1 working hours 2 hours charging time | 4750 scans/ 6.2 working hours 2 hours charging time | 4000 scans/ 5.5 working hours 2 hours charging time | 7524 scans/ 10.4 working hours 2 hours charging time |
| Ruggedness | IP65 | IP65 | IP65 | IP65 | IP65 |
| Temperature | -10°C to 60°C | -5°C to 50°C | 0°C to 50°C | -5°C to 50°C | -10°C to 50°C |
EF02 Wearable Scanner Feature

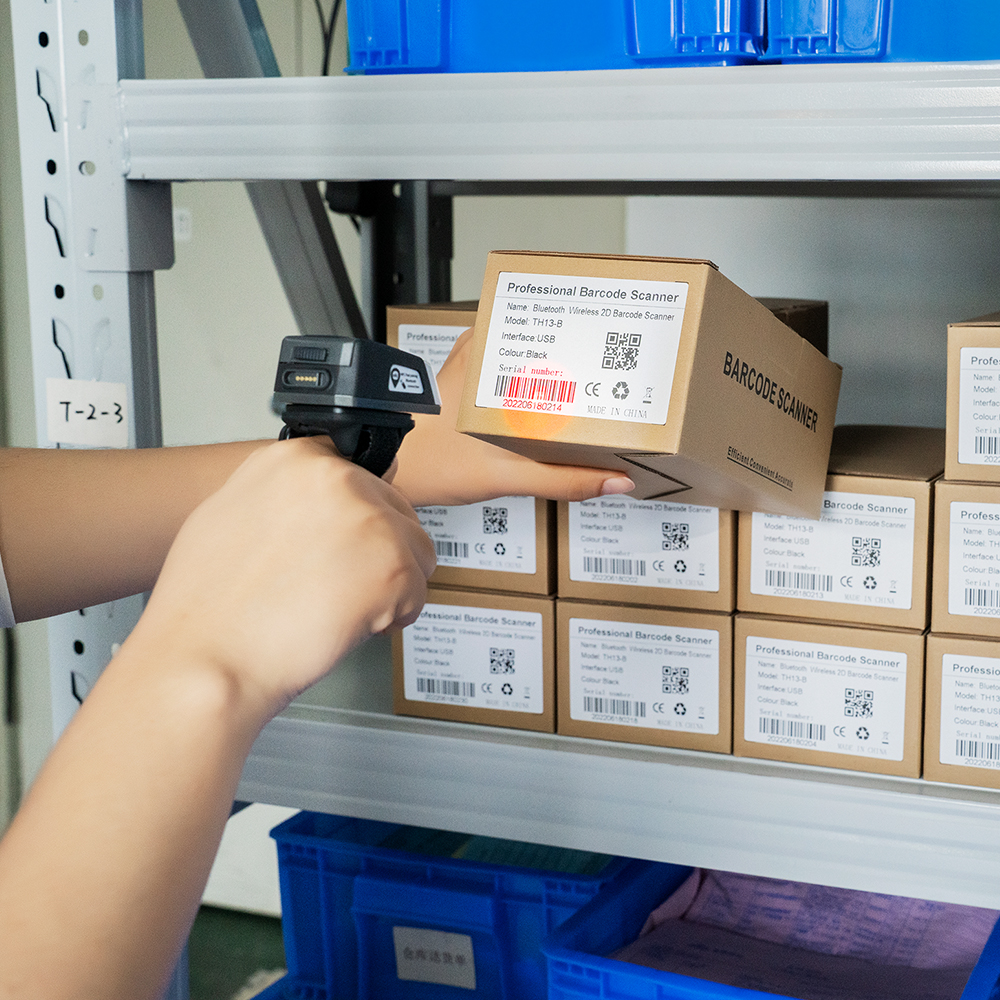

The EF02 Wearable Scanner is a cutting-edge device designed to cater to the high-efficiency needs of various industries, particularly logistics and warehouse management. Here are its standout features:
The EF02 Bluetooth ring scanner body case best-in-class rugged design, with sealing, a drop specification, and a tumble specification, ensuring your reliable operation. Designed to withstand drops, shocks, and high-pressure washes, they feature durable metal buckles
To ensure longevity and reliability, we utilize ALPS brand trigger buttons, it's rated for millions of actuation (trigger presses) — instead of the competition’s few hundred thousand actuation. The result — less frequent replacement of triggers and a lower Total Cost of Ownership
Our scanners are equipped with Zebra's renowned scan engines, enabling the near-instant capture of even damaged, dirty, and poorly printed 1D and 2D barcodes through PRZM Intelligent Imaging, a megapixel sensor, and Zebra’s superior algorithms.
EF02 wearable scanner supports back-to-back shifts without recharging, capable of operating across multiple shifts without the need for recharging. It is an ideal solution for businesses that operate around the clock: The standard battery offers a robust 7 hours of continuous power, allowing for 5,111 scans within a single charge, covering a full work shift with ease. For more demanding scenarios, the extended battery not only accommodates longer shifts but is also optimized for use in cold environments, further enhancing its lifecycle. This ensures that your operations stay productive without pause, supporting a three-shift workforce seamlessly.
Just tap for instant pairing: with NFC, workers can simply tap the EF02ON NFC-enabled Android devices. No need to scan a pairing barcode or open Bluetooth settings to identify and select the device. .
Connect the EFFON wearable scanner with virtually any Bluetooth-capable host device, spanning smartphones, tablets, and PCs. Our use of premium Bluetooth technology ensures a more stable and reliable connection for seamless integration into your workflow.
Charging Methods

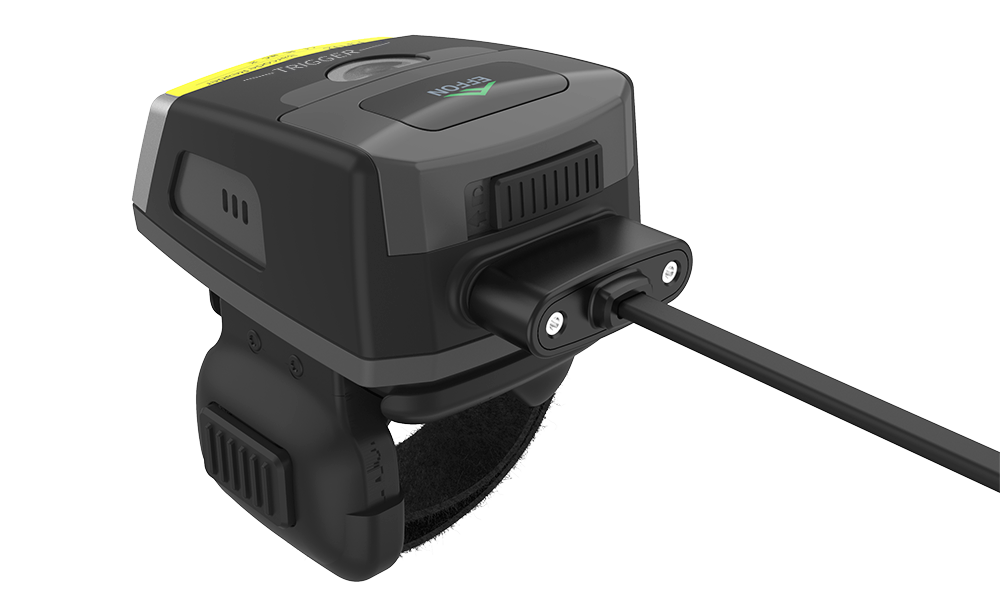

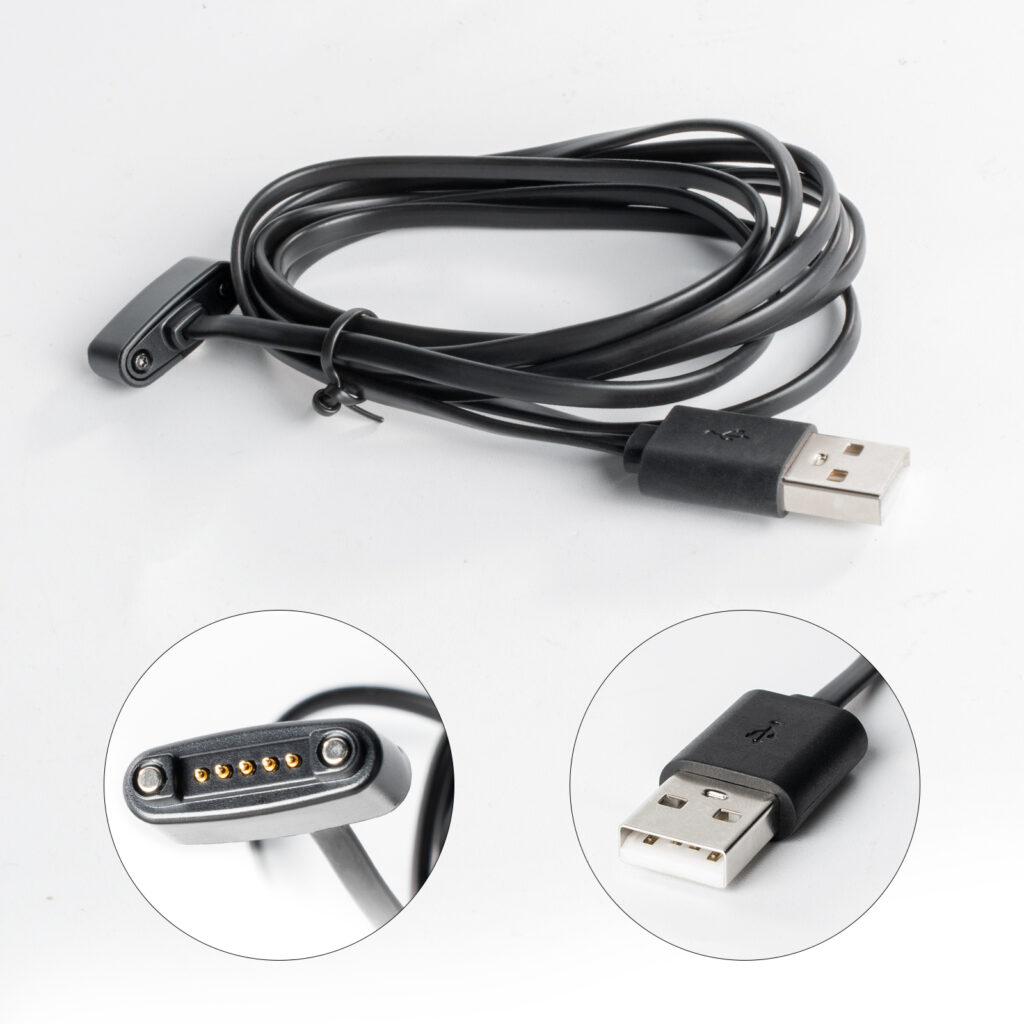

Magnetic Charging Cable
EFFON’s wearable scanners are equipped with a magnetic charging cable, designed to maximize durability and ease of use. The magnetic connection ensures that the cable attaches securely and effortlessly, reducing wear and tear from frequent plugging and unplugging. This feature not only extends the lifespan of the charging interface but also enhances the user experience.
Moreover, the charging cable is waterproof, providing additional protection against liquid damage. This makes the scanner more suitable for a variety of work conditions, including those where exposure to moisture is a concern. With this thoughtful design, you can rely on consistent charging capability without the risk of damage from water or repeated use.
Single Charger
It can charge one scanner and one backup battery at the same time.
The charge time is 2 hours.
5-slot charging station
5-slot charging station with universal power supply
Charging Station for 5 scanners and 5 backup batteries
The charge time is 2 hours.
BFP2 Standard Charger
- Dimensions: 72.0mm L × 56.0mm W × 40.3mm H
- Weight: 50grams
- Power: DC:5V/500mA
- Charge: 350mA/h
- Charging time: 2 hours
- Interface:
* 1×Type-C+USB for charging(5V DC)
* 2×DC jack(two side): 5V DC - Characteristic:
* It can charge both batteries and machines at the same
time.
* The base can be used in series. The number of bases
can be used in series up to 10, which can reduce wiring and
save space.
Single Charging Station
It can charge one scanner and one backup battery at the same time.
The charge time is 2 hours.
5-slot charging station
5-slot charging station with universal power supply
Charging Station for 5 scanners and 5 backup batteries
The charge time is 2 hours.
Data Transmission
Can support 6 scanners connected with Windows and transmission data at the same time(Via BFP1 charger).
BFP1 Charger with Bluetooth Adaptor
- Dimensions: 72.0mm L × 56.0mm W × 40.3mm H
- Weight: 50grams
- Power: DC:5V/500mA
- Charge: 350mA/h
- Charging time: 2 hours
- Interface:
* 1×Type-C+USB For charge or data transmission(5V DC)
* 2×DC jack(two side): 5V DC - Characteristic:
* It can charge both batteries and machines at the same
time.
* The base can be used in series. The number of bases
can be used in series up to 10, which can reduce wiring and
save space.
Quick guide
Learn how to swiftly pair your scanner for immediate use, ensuring a seamless integration into your workflow.
TAP FOR INSTANT PAIRING BY NFC
Note: First you need to make sure that your mobile phone support NFC function.

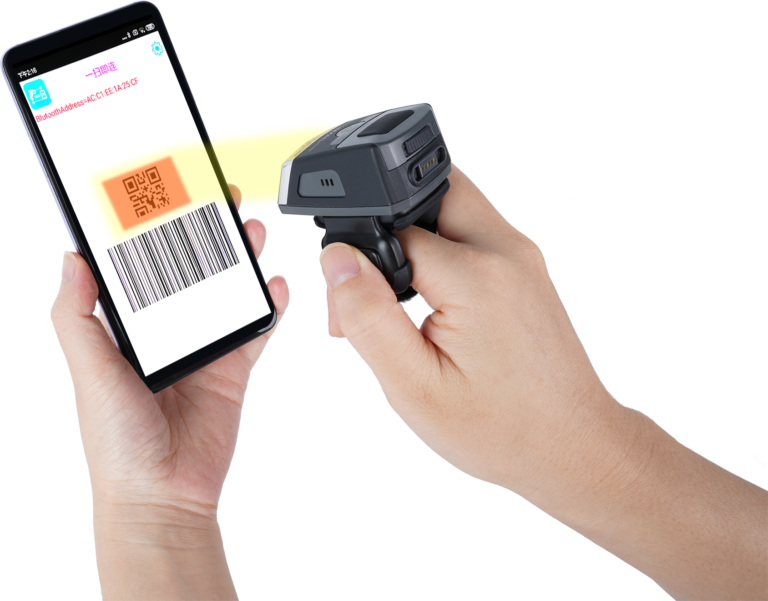

With NFC Function, workers can simply tap the scanner NFC and pairing with Android devices;No need to scan any pairing barcode or open Bluetooth setting to identify and select the device.
QUICK CONNECTION BY GET MAC ADDRESS APP
You can download Effon develop APP(SCAN
TO GO) to your Android phone, when you
open the app, it can simply get the device’s
mac address, and then the scanner scan the
mac address, which can enable the scanner
to connect with the android device simply
and quickly.

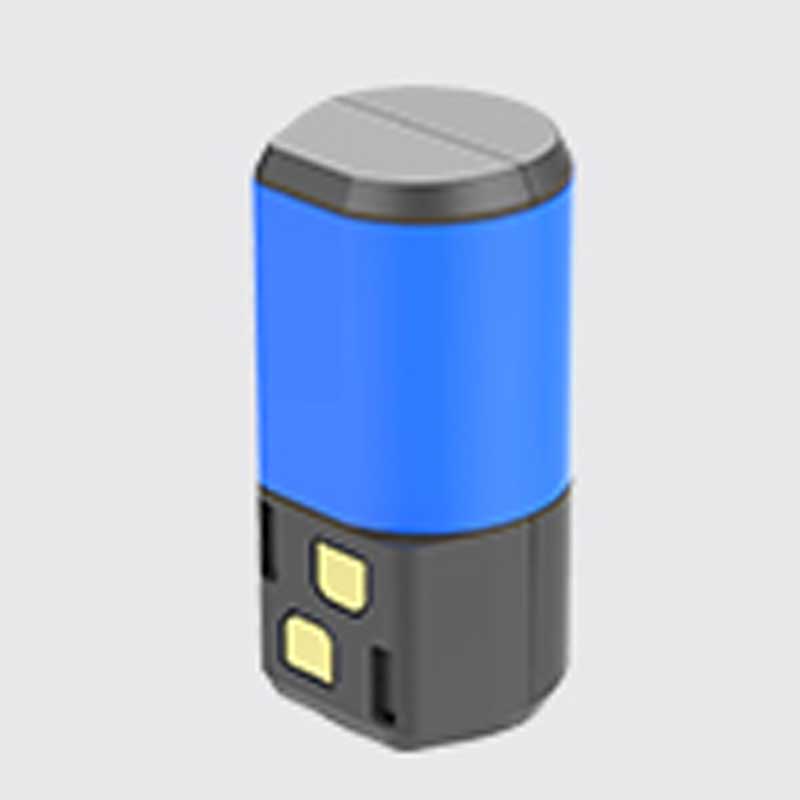

BATTERY DISASSEMBLY

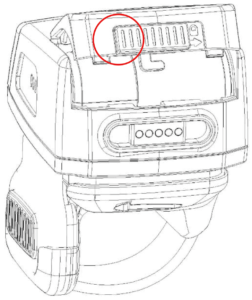

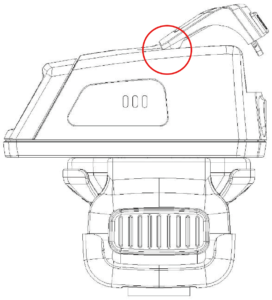

OPEN THE BATTERY COVER
Push the push button to the left in thedirection of the arrow
Keep the push button on the left and pullthe battery cover up to open the battery cover and remove the battery

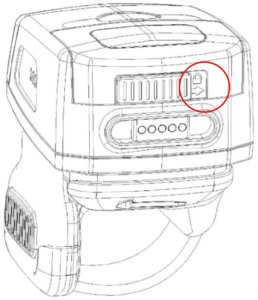

CLOSE THE BATTERY COVER
With the battery electrode facing down and into the battery slot, insert the two buckles on the battery cover into the holes on the top of the machine.
Keep the push button to the left, cover the battery cover, and press the battery cover firmly to push the push button back to the right.
