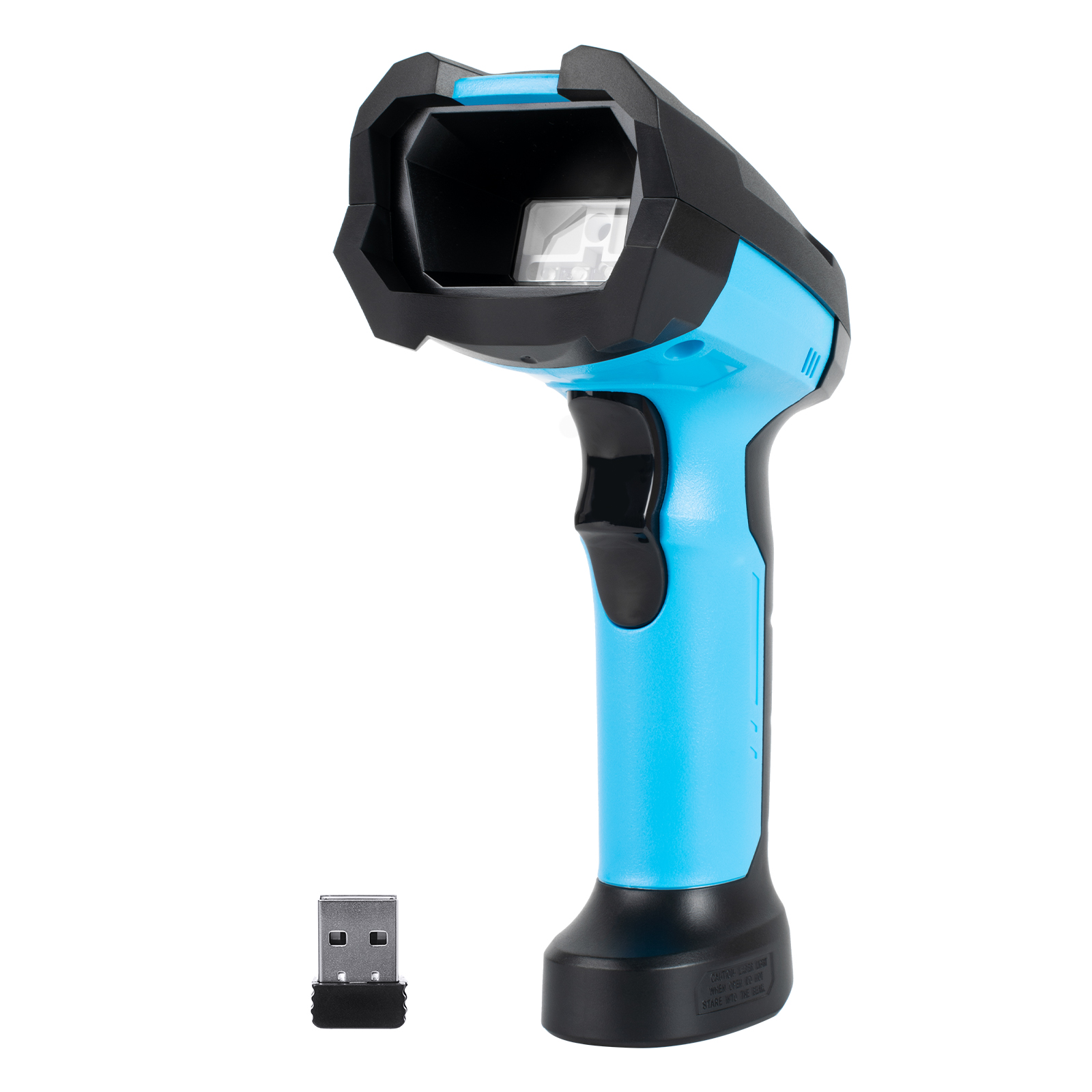

Bluetooth DPM Scanners Barcode Handheld TH32
TH32-DP is a high-performance, ultra-rugged wireless 2D DPM handheld scanner with advanced image decoding and an IP68 sealed design.
Powered by a megapixel engine with optimized optics and illumination, it reliably reads laser-marked, scratched, high-density, and low-contrast barcodes.
Frequency-hopping wireless ensures stable communication in complex industrial environments— it performs reliably in harsh industrial settings such as factories, warehouses, docks, and demanding environments including cold-chain, high-humidity, and dusty workplaces.
- Scanner: Bluetooth 2D
- Weight: 178g
- Communication: Bluetooth & 2.4G
- Bluetooth: 5.0
- Support Android/IOS/Windows
- Temperature:-20°C to 55°C
- Battery: 2600mA can't removable
- Charge Time: 3-4hours
- Working Time: 25 hours
- Charge Ways: USB Cable wth small charger
- IP Grade:IP68
- Wireless distance: Bluetooth:50M; 2.4G: 100M
Key Features

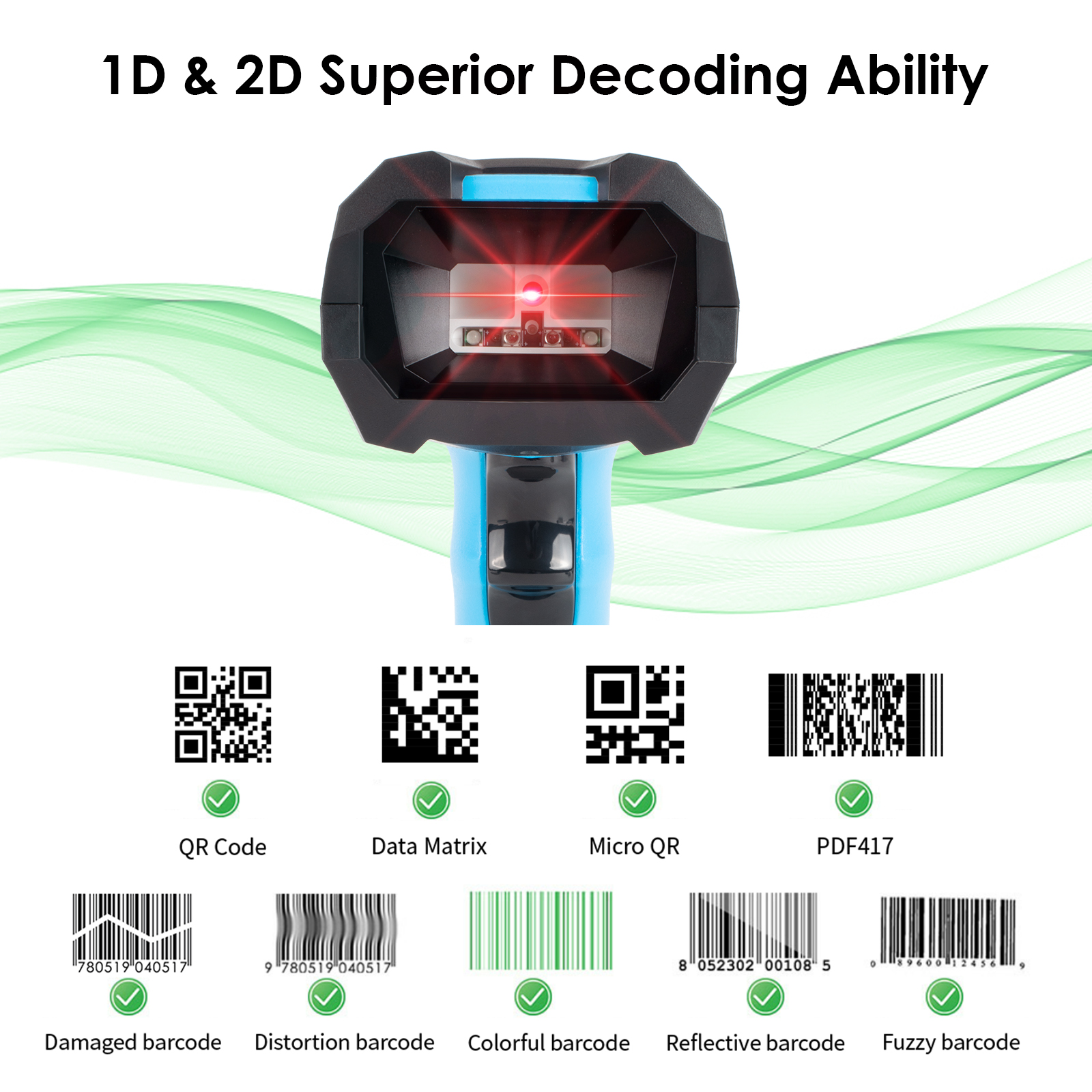

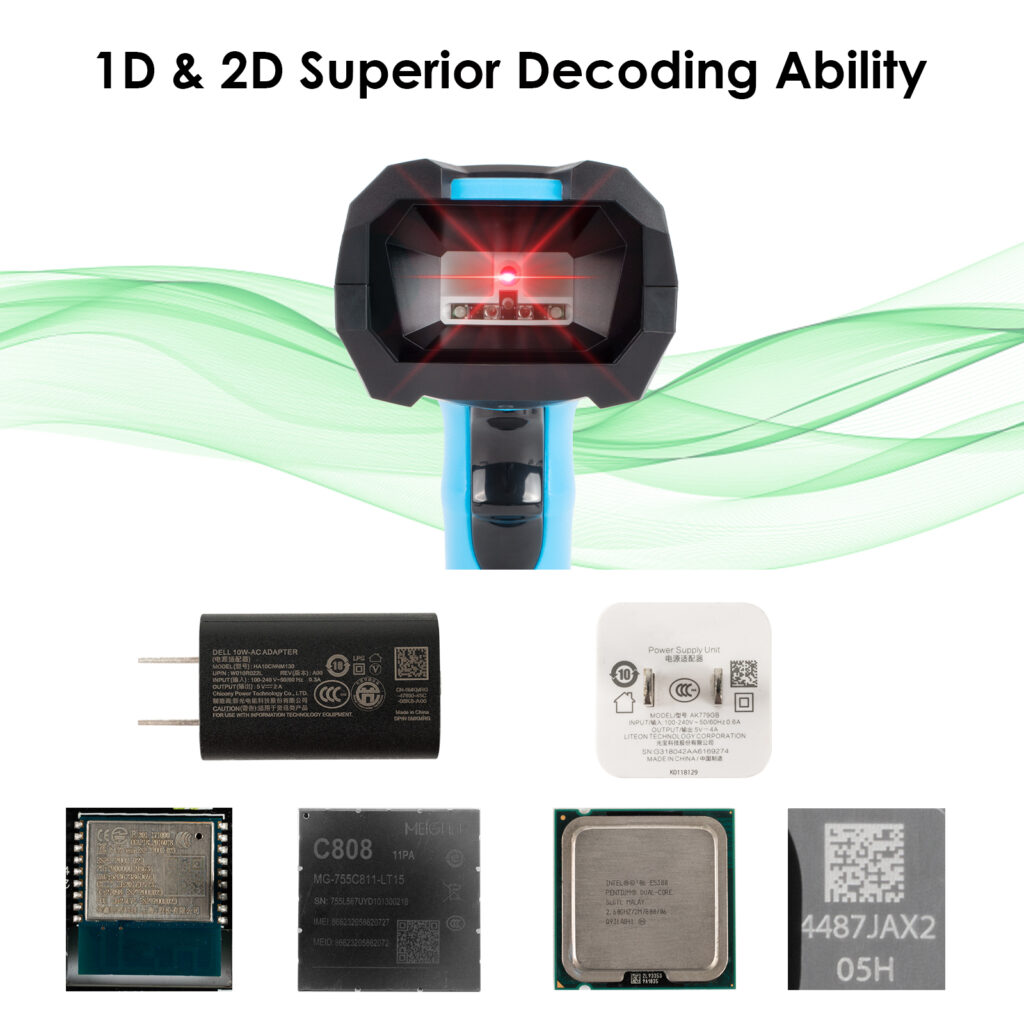

01: Scanning Performance
Megapixel DPM Scanning Performance
Megapixel engine with optimized lenses and lighting reads complex DPM barcodes: laser-etched, scratched, high-density, and more.

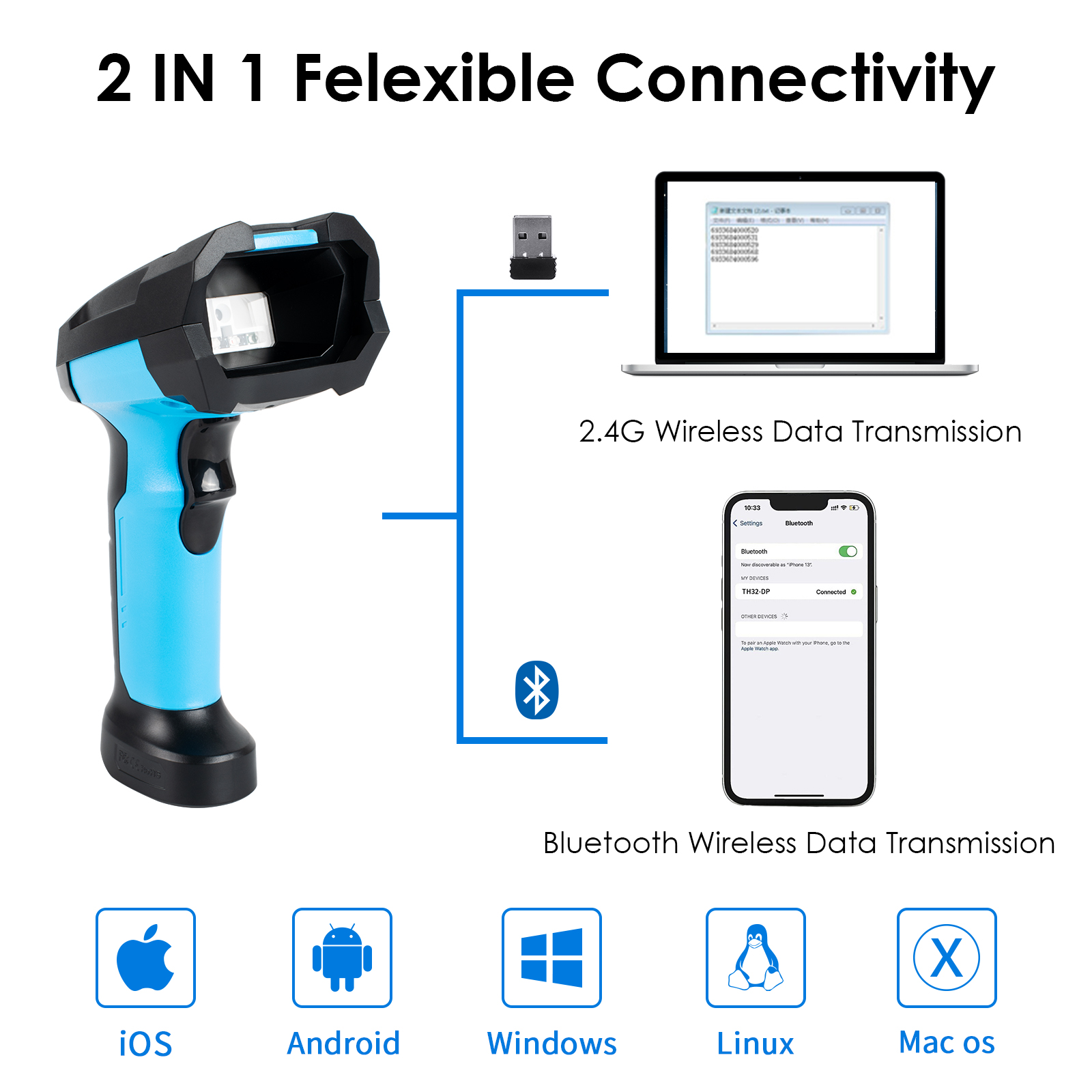

02:Connection Options
2-in-1 Connectivity
Bluetooth: connect to smartphones/tablets/PC
2.4G Wireless: connect to PC via receiver

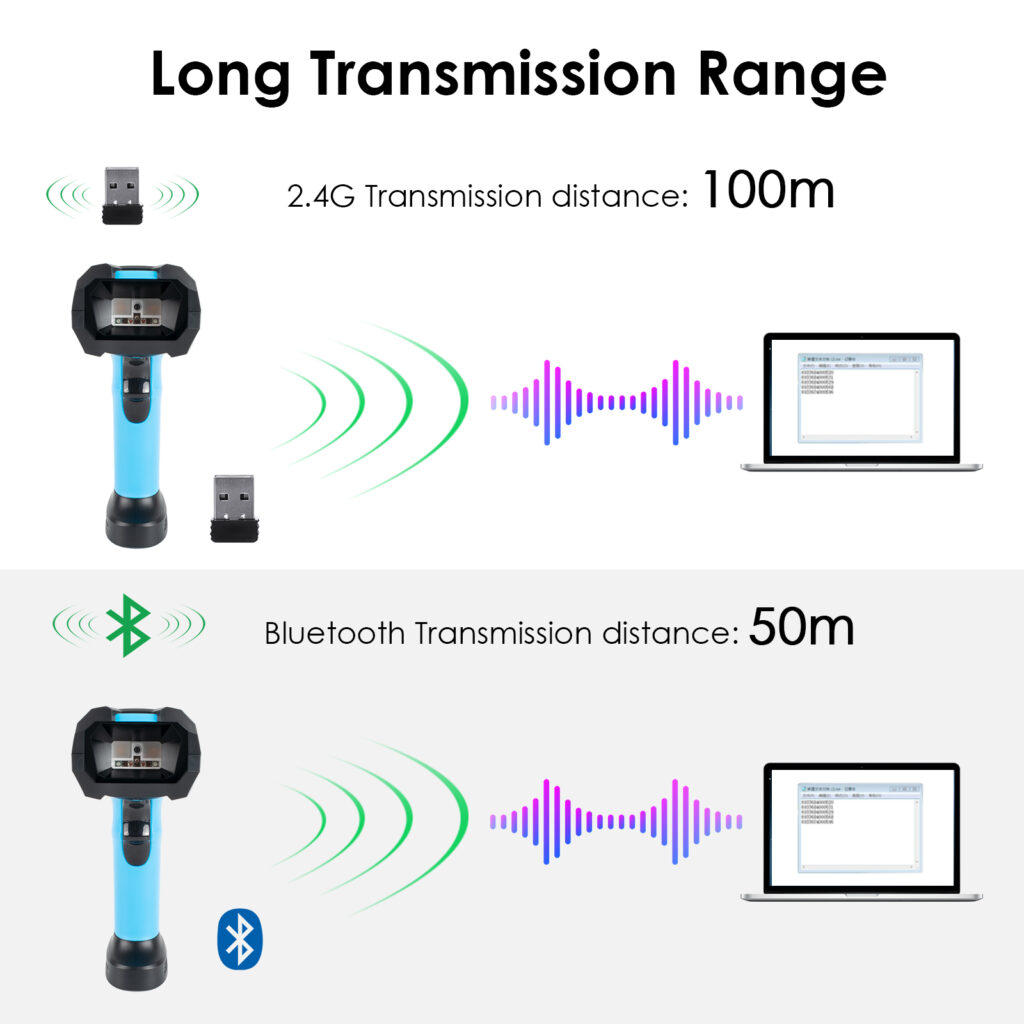

03: Wireless Range
Wireless Range (Line of Sight, No Obstacles)
Bluetooth Transmission: Unobstructed transmission distance 50 Meter
2.4G: Unobstructed transmission distance 100 Meter

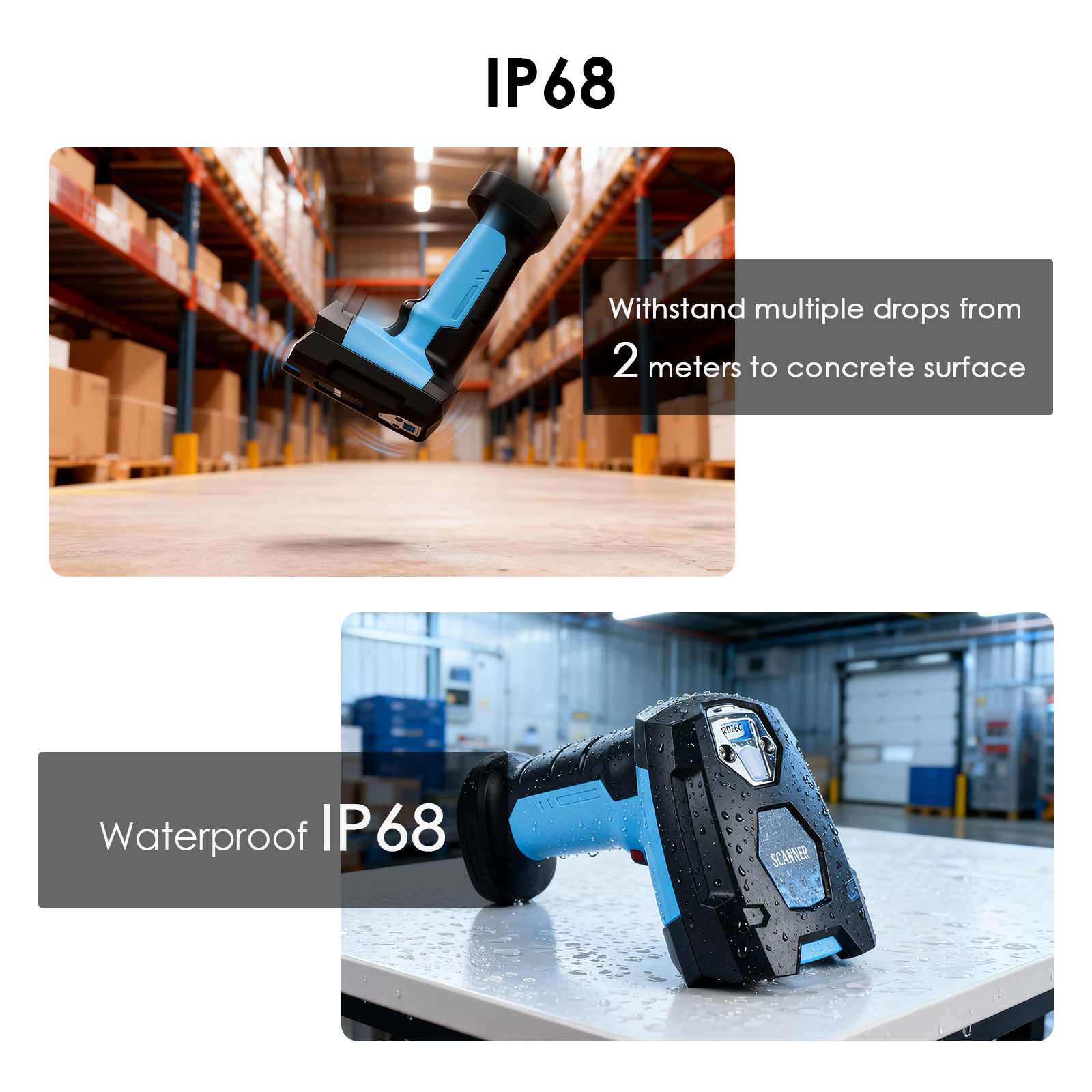

04:Rugged Protection
IP68 Ultra-Rugged Protection
Built for industrial environments and reliable operation in harsh conditions.

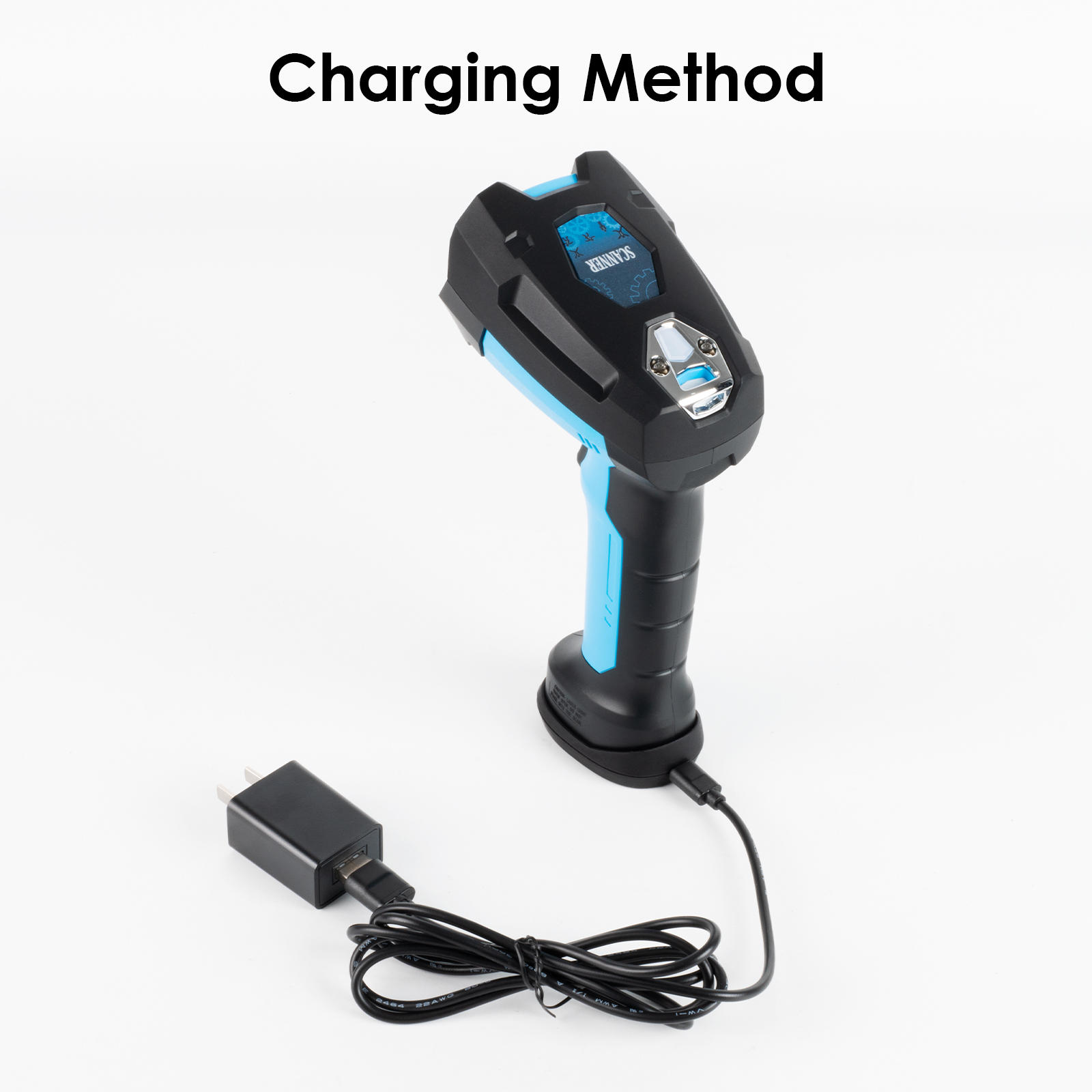

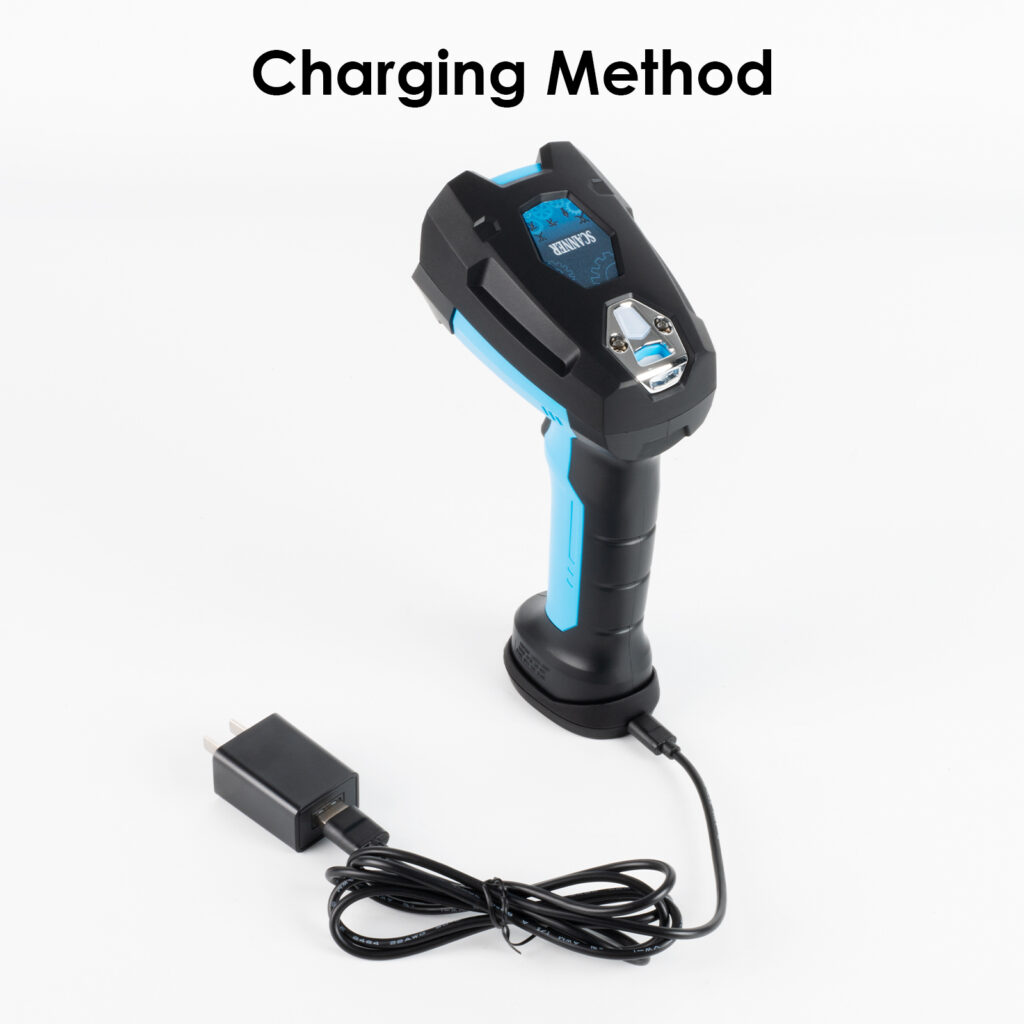

05: Charging Ways
Charging Method
Includes a mini charging cradle; charge via USB cable.
Specification
Physical Characteristics
Communication
| Dimensions | 97mmL×67mmW×165mmH |
| Weight | 178g (without cable) |
| Resolution | Megapixels, 1280*1024; |
| Field of view angle | ±72°、±72°、360°（Skew、Pitch、Roll） |
| Current | 320 mA (operating); 80 mA (standby) 5 +/-10% VDC @ 350 mA |
| Power | 1.60 watts (working); 0.40 watts (standby) |
| Input voltage | DC 5 volts ± 0.25 volts |
| Bluetooth | Bluetooth 5.0 |
| 2.4G | 2.4G Adaptor |
| Communication | 2.4G wireless+Blue-tooth |
| OS | IOS, Android, Windows, Mac |
| Battery Capacity | 2600mA, can't removable |
| Standby Time | > 30 days |
| Charge time | 3-4 hours |
| Working time | 25 hours |
User Environment
Barcode Scanning
| Operating Temp. | -20℃ - 55℃ |
| Storage Temp. | -40℃ - 70℃ |
| Environment humidity | 5%RH--95%RH(no condensation) |
| Drop specification | Withstand multiple drops from 2 meters to concrete surface |
| Tumble Spec. | None |
| Protection level | IP68 |
| 2D Scanner | 2D Image Sensors |
| 1D Symbologies | UPC-A，UPC-E，EAN-13，EAN-8，ISBN/ISSN，code 39，Code 39（Full ASCII），code 32, Interleave 2 of 5，Industrial 2 of 5，Matrix 2 of 5，IATA 25，Codebar，Code 128，Code 93，Code11 cMSI/Plessey，UK/Plessey，UCC/EAN 128，Composite Code -A/B/C，GS1 DataBar（RSS）etc |
| 2D Symbologies | QR Code，Micro QR，Data Matrix，PDF417，Micro PDF417， Aztec，Maxicode |
