2D Bluetooth Barcode Reader QR Code Scanner M2

Bluetooth Barcode Scanner M2

The M2 Bluetooth Barcode Scanner 2D QR Code Reader is an ultra-slim Bluetooth back-clip scanner designed to work together with a smartphone and replace traditional bulky handheld PDAs.

By simply attaching the M2 to the back of a phone, your team can turn an ordinary smartphone into a professional data collection terminal that is lighter, more flexible and more comfortable for long shifts in warehouses, logistics and retail operations.

Battery: 600mAh can't removable
Charge Time: 2hours
Working Time: 27.8hours 5S/per scan

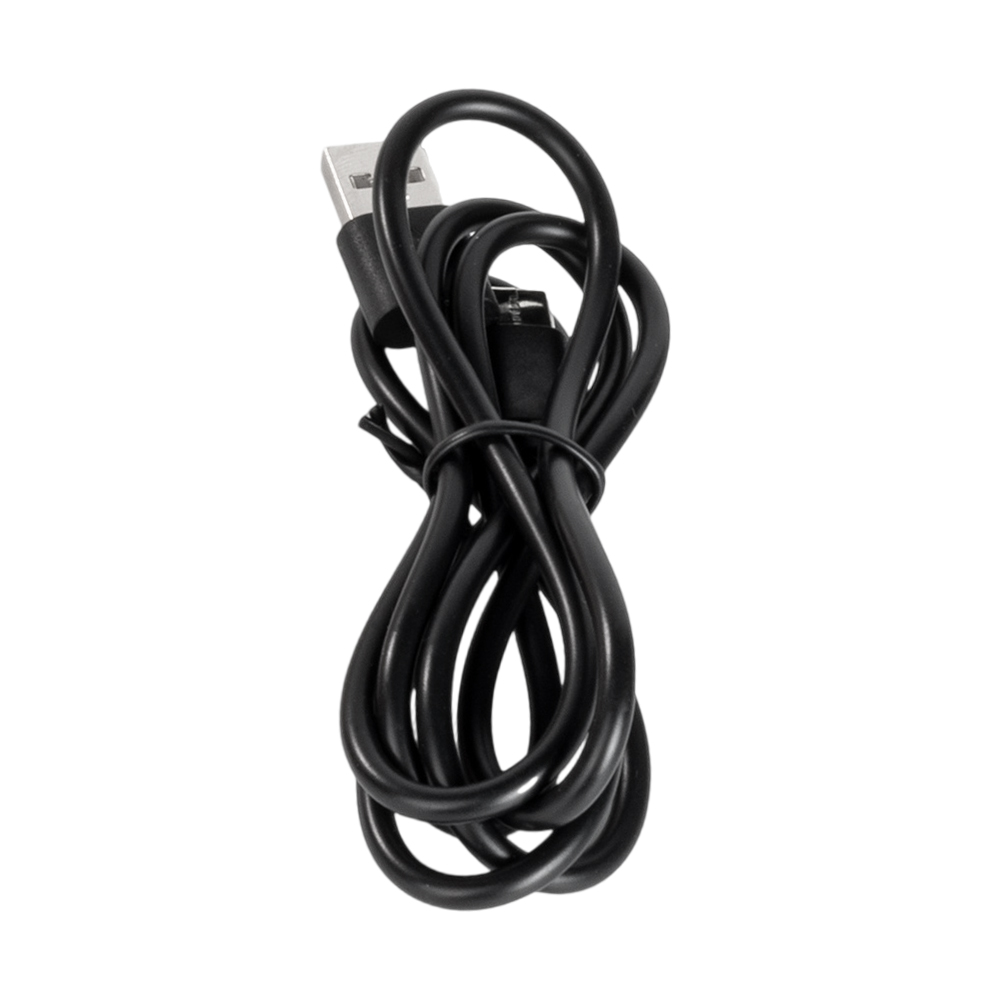

Charge Ways: Charger
IP Grade:IP66
Tumble Spec: 500 times 3.28 ft./1m tumbles

Key Features

01: Replace bulky handheld PDAs

One smartphone + M2 = a smart, lightweight PDA replacement

With “Smartphone + M2”, your team can perform most PDA-style scanning tasks using the phones they already know. This provides a much lighter and more ergonomic solution for picking, inventory and delivery workflows.

02: Size limitation

No phone size limitation, flexible deployment

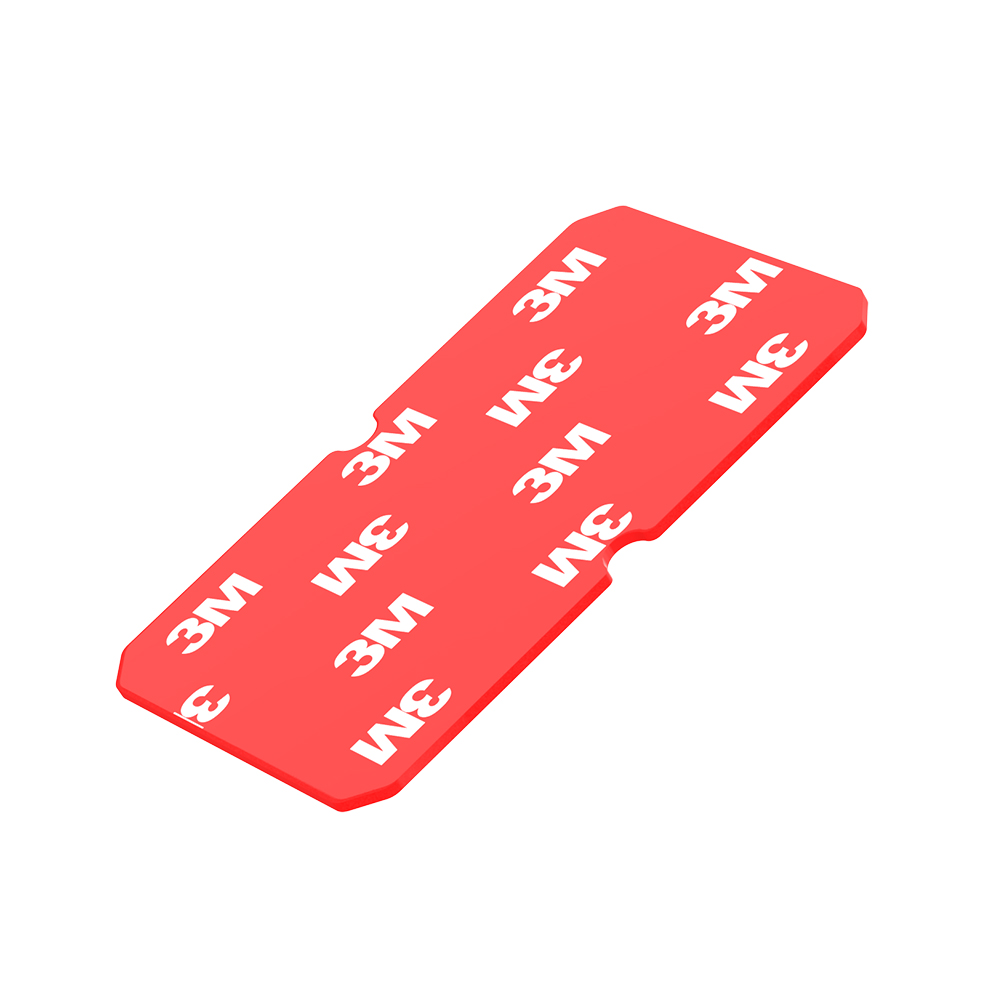

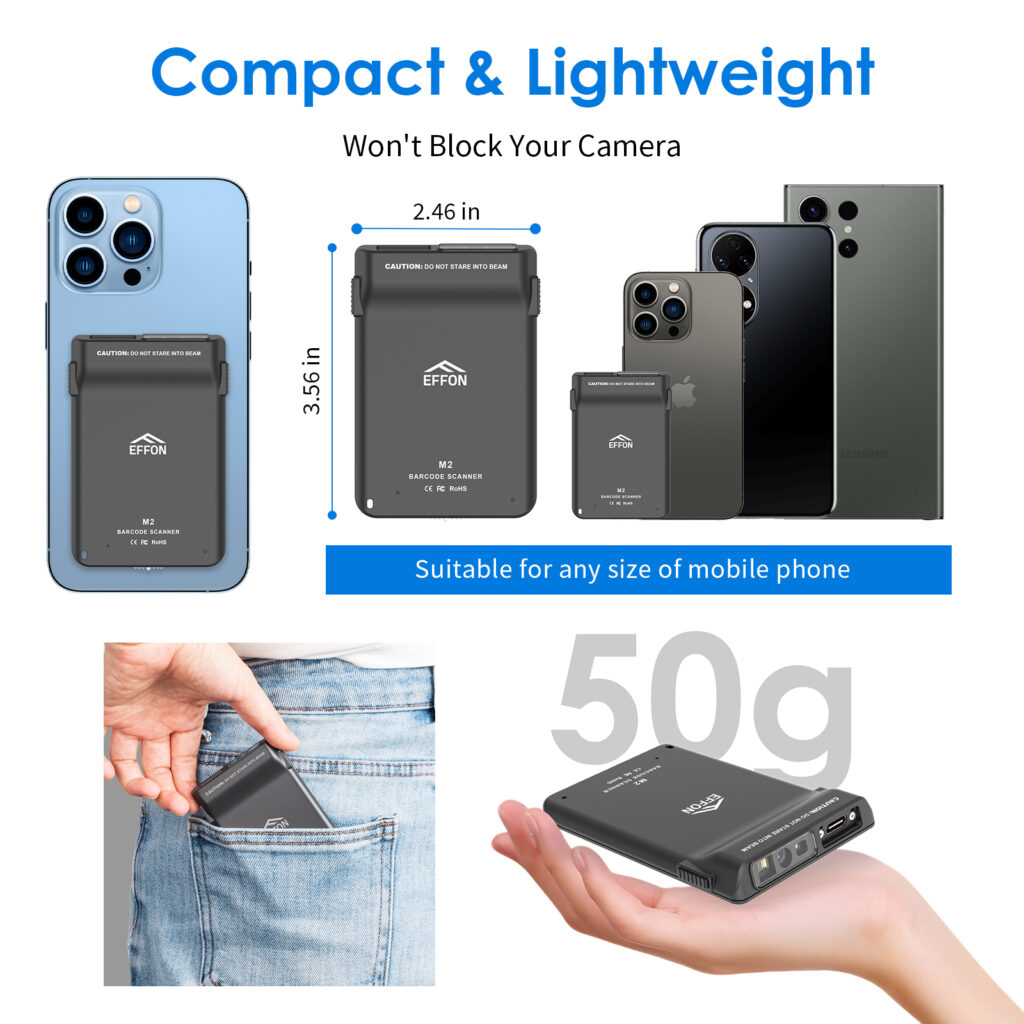

The adhesive back-clip design means M2 has no strict phone size limitation. It works with different smartphones and many protective cases, making it ideal for mixed device fleets and phased deployments.

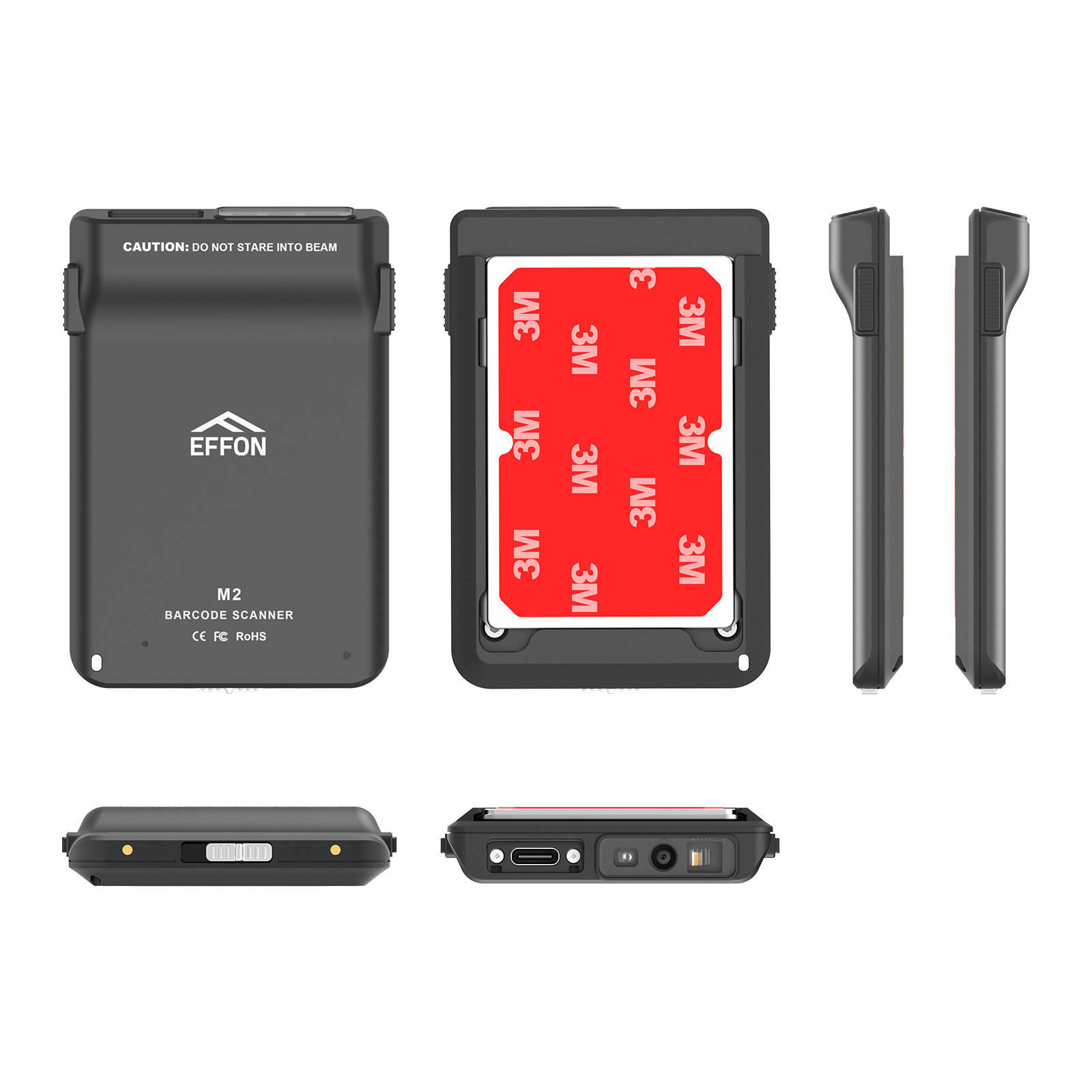

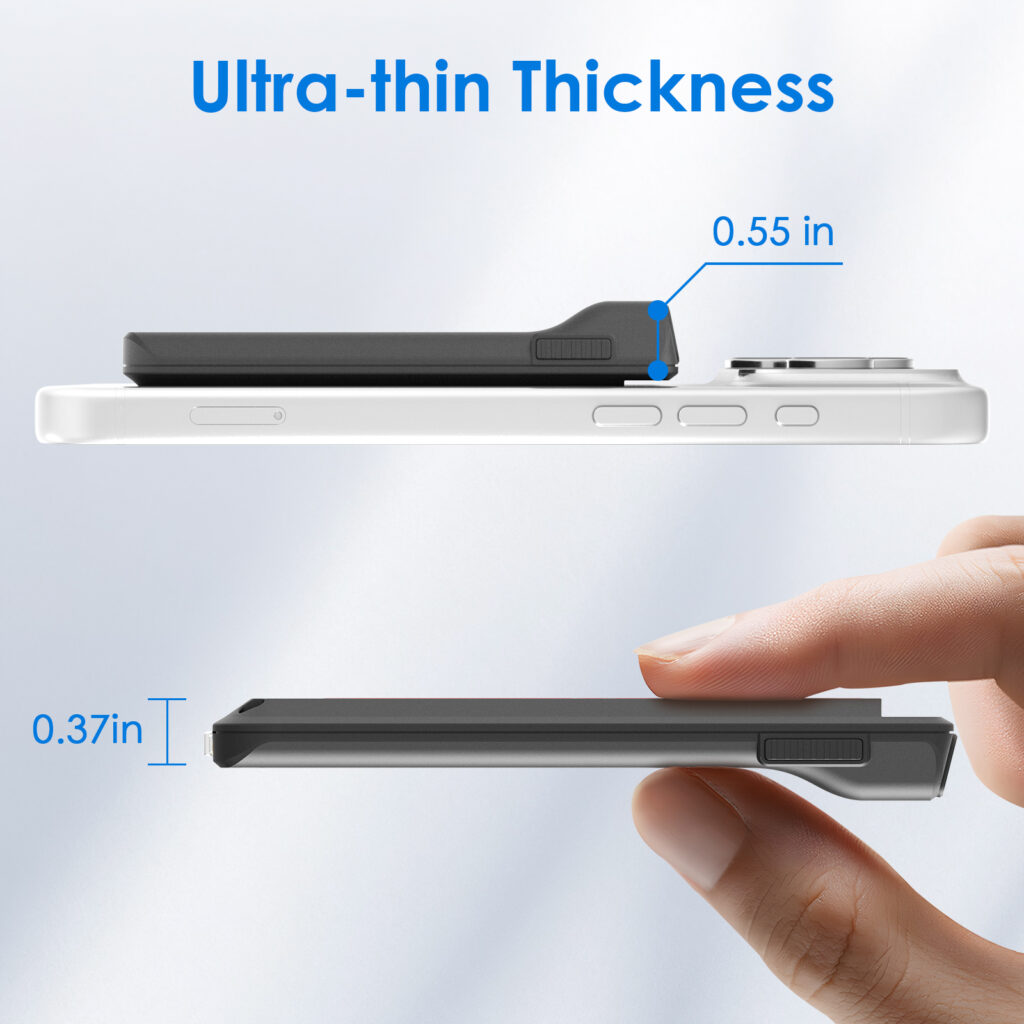

Ultra-slim back-clip design

M2 adds very little thickness to the back of the phone, so the grip still feels natural. It does not block the camera or buttons, allowing operators to scan barcodes and use the touch screen smoothly.

03: Barcodes Compatible

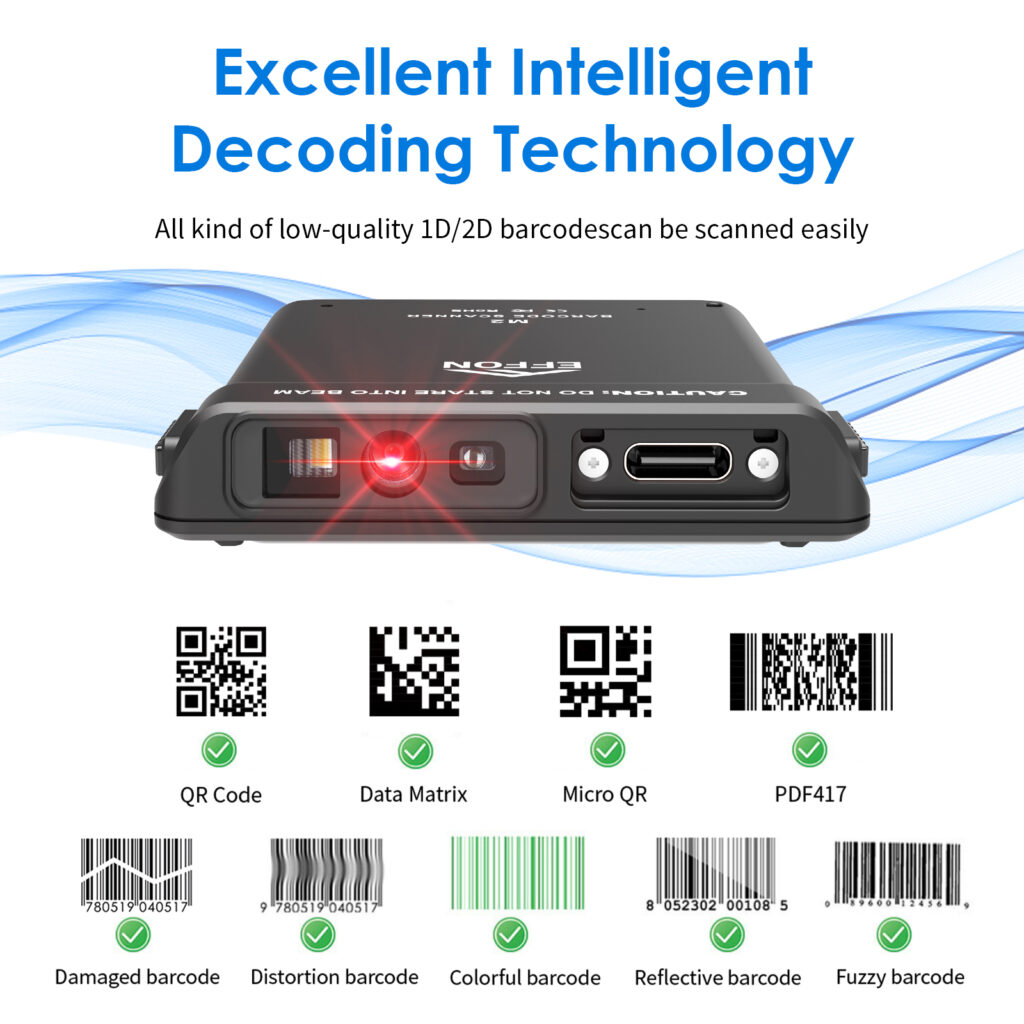

Support for major 1D/2D barcodes

The M2 supports mainstream 1D and 2D symbologies, including QR Code, Data Matrix, PDF417, EAN/UPC, Code 128, Code 39 and more, fitting a wide range of industry applications.

04: M2 Scanner Working Hours

Long battery life for full-shift operation

On a full charge, the M2 can run for around 28 hours at a scanning rate of one scan every 5 seconds.
A single charge can easily cover long shifts or even double shifts, reducing frequent charging and downtime and keeping picking, inventory and delivery workflows running smoothly.

Working Time> 28hours

Charge Time:2hours

05: Scan Buttons

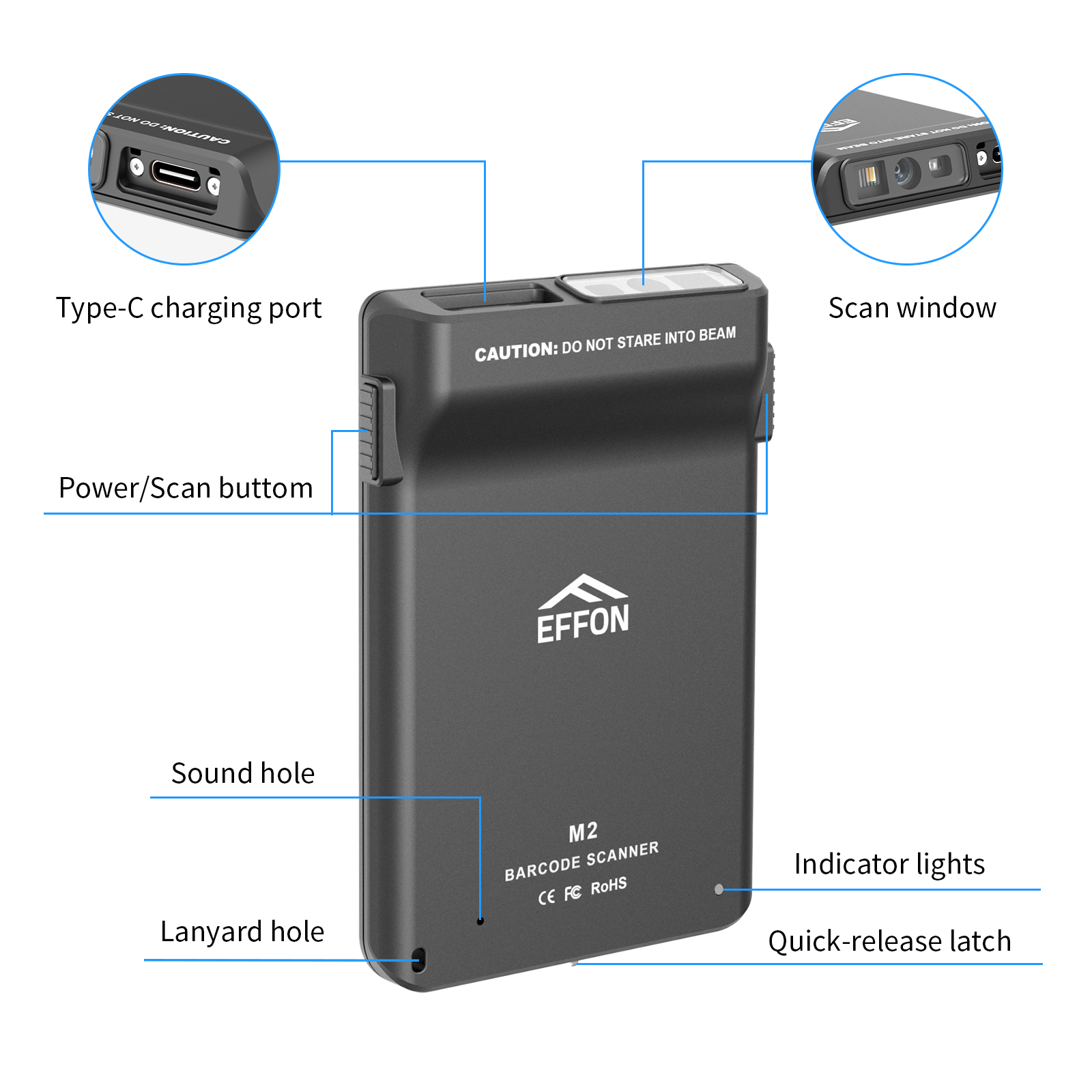

Dual-Side Scan Buttons

The M2 is designed with scan buttons on both sides, so operators can use it comfortably with either hand. They can switch between left and right hand at any time, without changing their natural grip or working habits. This makes M2 more flexible for different users and helps reduce fatigue during long picking, inventory and delivery shifts.

06: M2 Scanner Ways to Use

Three Ways to Use

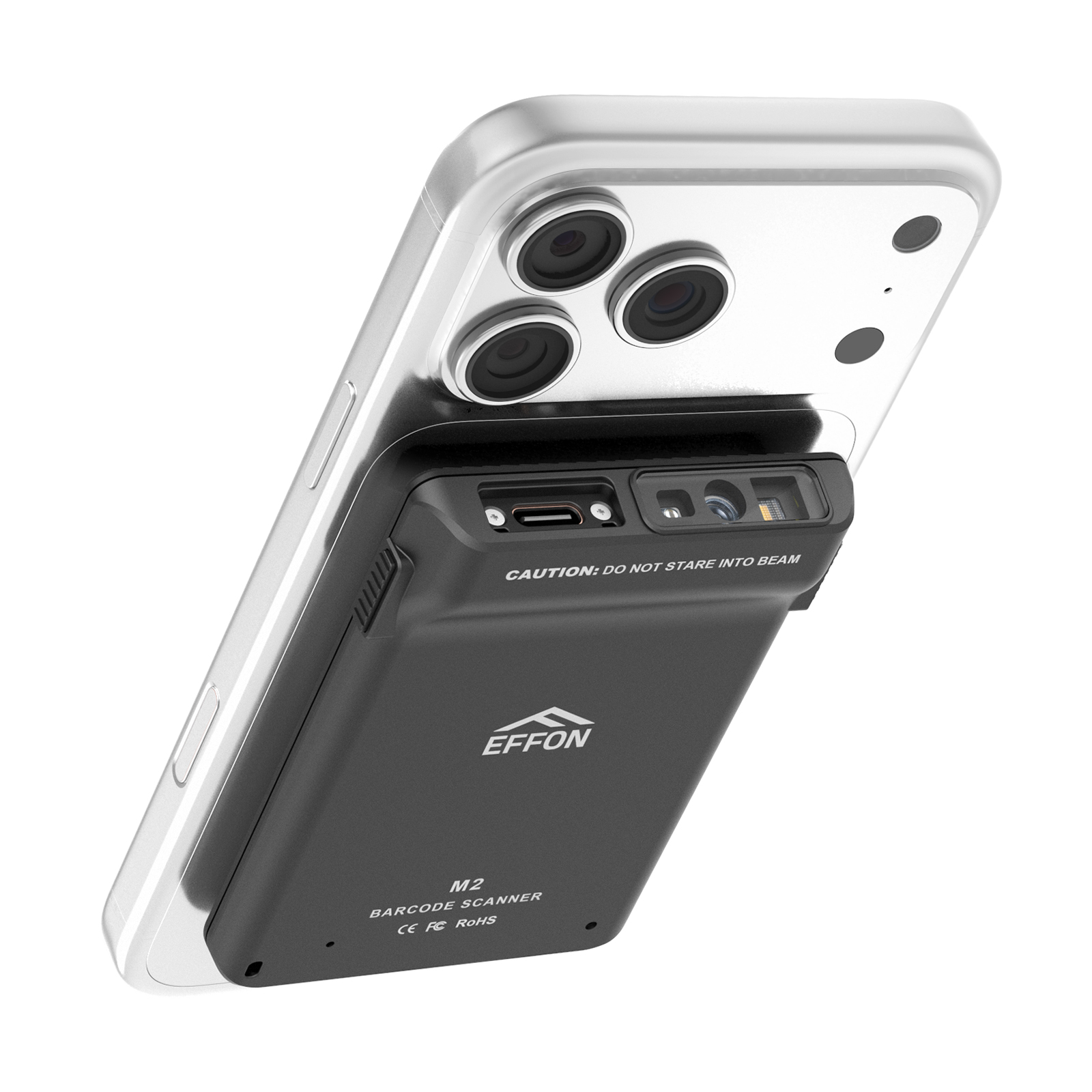

1. Mounted on the back of a smartphone

Attach M2 to the back of your phone and use it together with your mobile app to turn a regular smartphone into a professional data collection terminal.

2. Used as a standalone Bluetooth scanner

M2 can also work as an independent Bluetooth barcode scanner, connected to a tablet, PC or other host device for scanning.

3. Used with the wrist strap

Combine M2 with the wrist strap to secure the phone + scanner on the hand and reduce the risk of accidental drops during high-frequency picking and delivery tasks.

07: IP65 Industrial Scanner

Rugged design

With an IP65 rating, the M2 is built for tough working environments. It is dust-tight and protected against water jets, making it suitable for warehouses, logistics hubs and light outdoor use.

Operators can rely on M2 to keep scanning accurately even in dusty aisles, loading docks or slightly wet conditions.

08: Operating temperature

Working Operating temperature

Works from -20°C to +55°C, suitable for warehouse, cold-chain and logistics environments.

Specification

Physical Characteristics

Communication

Dimensions	90.3×62.4×14.0 mm (L×W×H)
Weight	50.4 grams
Resolution	640 (horizontal) × 480 (vertical) pixels
Ambient illumination	0~100,000 LUX
Light	Warm white LED,Laser 650nm
Scanner angle	±60°,±60°,±360°(Skew, Pitch, Roll)
Field of view	Horizontal: 27.6° , Vertical: 20.9°

Bluetooth	Bluetooth Low Energy (BLE) 5.0
2.4G	2.4G（Optional）
Communication	Bluetooth HID, SPP, BLE with 30M distance
OS	IOS, Android, Windows, Mac
Battery Capacity	600mAh, can't removable
Standby Time	> 30 days
Charge time	2 hours
Working time	27.8 hours, 5S/Per scan, 20014 times

User Environment

Barcode Scanning

Operating Temp.	-20℃ - 55℃
Storage Temp.	-20℃ - 60℃
Environment humidity	5%RH--95%RH(no condensation)
Drop specification	Pass 100 times 1.5m drop test
Tumble Spec.	500 times 3.28 ft./1m tumbles
Protection level	IP65

2D Scanner	Newland E3P or N1
1D Symbologies	Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM 128, Plessey, MSI-Plessey
2D Symbologies	PDF417, QR Code, Micro QR, Data Matrix
