Barcode Handheld Scanner 2D Barcode Reader

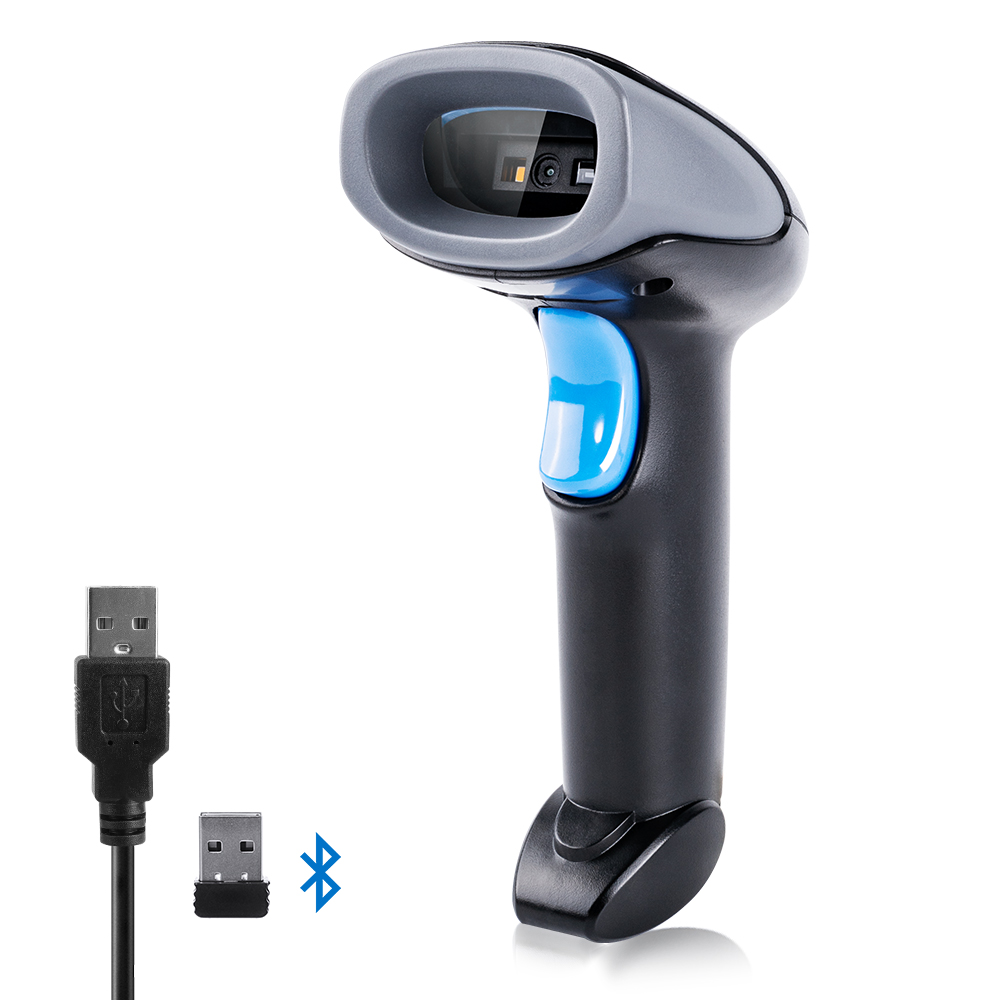

Barcode Handheld Scanner TH13

Wireless Barcode Scanner TH13 is a handheld 2D barcode scanner excels in scanning a variety of barcodes, including those on paper, screens, and those with distortions or damage. It uses innovative image transmission technology for fast, accurate scanning and supports instant error correction.

The scanner is especially efficient with linear and two-dimensional barcodes, offering quick, plug-and-play functionality for QR code invoicing like WeChat and Alipay, without the need for additional plugins. It’s also capable of handling specialized codes such as agricultural project drug barcodes.

Scanner: Bluetooth 2D
Weight: 178g (without cable)
Communication: Bluetooth & 2.4G
Bluetooth: 4.2
Support Android/IOS/Windows
Temperature:0°C to 50°C

Battery: 2000mAh can't removable
Charge Time: 3-4hours
Working Time: 6-7 hours(5S per scan)
Charge Ways: USB Cable
IP Grade:NONE
Wireless distance: 50-80 meters; Blue-tooth about 10 meters

Key Features

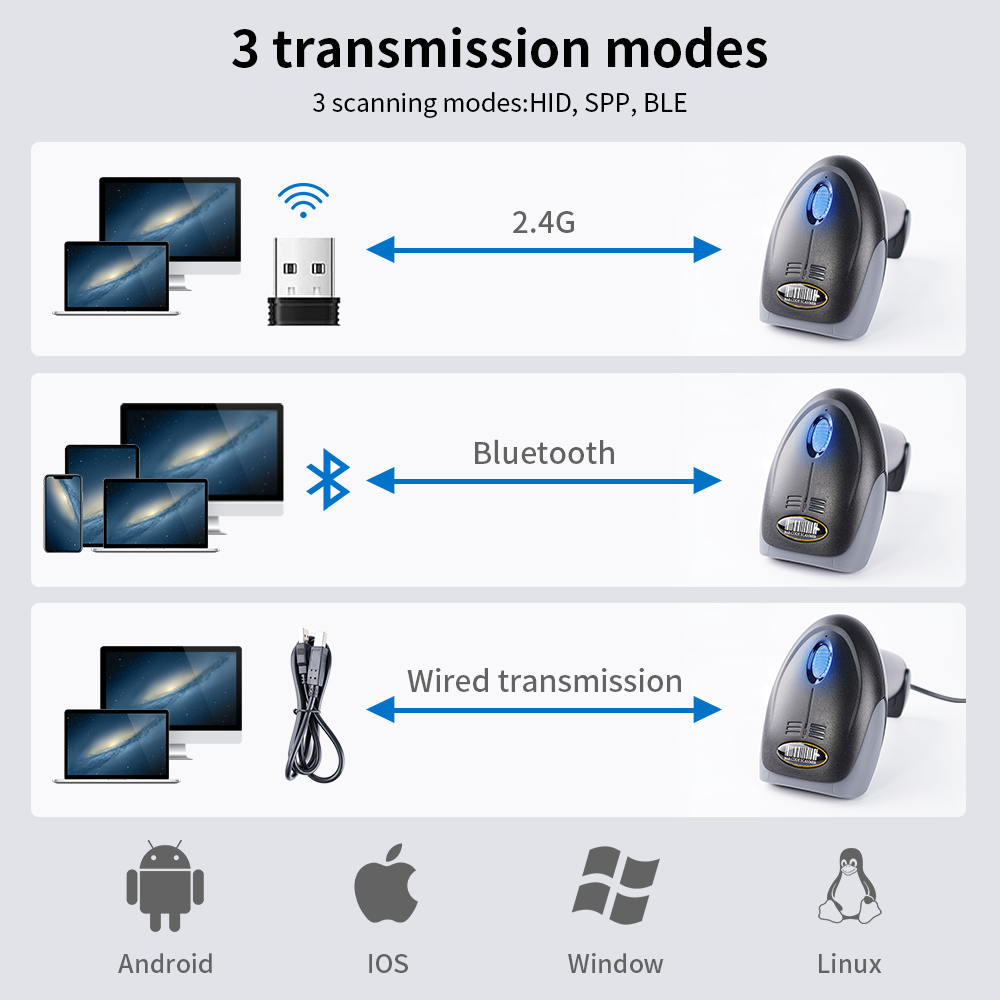

01: Connection Options

3-in-1 Connectivity Options

2.4G Wireless: Connect to a laptop or PC via USB receiver
Bluetooth: Connect to mobile devices (iOS/Android) and Windows

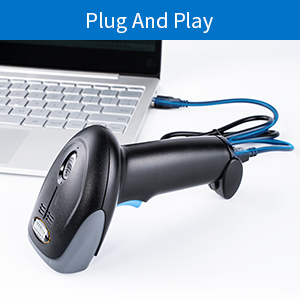

USB Cable: Wired connection to a PC (plug-and-play)

02:Trigger Modes

3 Trigger Modes

Key Trigger Mode: The scan light turns on only when you press the trigger.
Continuous Scan Mode: The scan light stays on continuously when the scanner is powered on, allowing hands-free scanning without pressing any button.
Auto-Sensing Mode: The scan light remains off until a barcode is placed in front of the scanner. Once detected, the scan light turns on automatically to read the barcode.

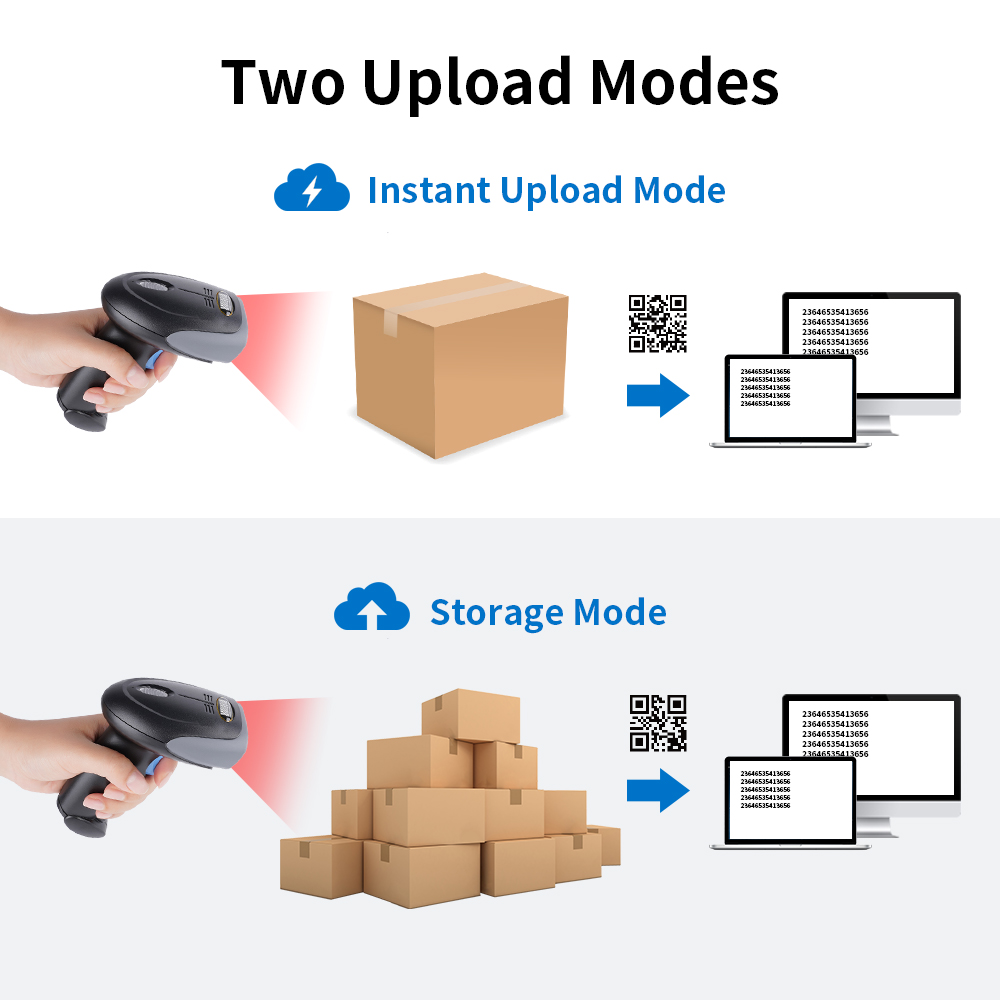

03: Upload modes

2 Upload Modes

Instant Upload Mode: Scan and upload barcodes directly to the active application (the file or field you’re currently working in).
Storage Mode: All scanned barcodes are saved to the scanner’s built-in memory. Upload the stored data to your device in one batch when needed.

04:Transmission Range

Transmission Range (2.4G Wireless)

Indoor: 30–50 m
Outdoor: 80–100 m (open area, line of sight)

Specification

Physical Characteristics

Communication

Dimensions	97mmL×67mmW×165mmH
Weight	178g (without cable)
Resolution	640 (horizontal) × 480 (vertical) pixels
Field of view angle	±42°, ±32° (horizontal, vertical)
Current	320 mA (operating); 80 mA (standby) 5 +/-10% VDC @ 350 mA
Power	1.60 watts (working); 0.40 watts (standby)
Input voltage	DC 5 volts ± 0.25 volts

Bluetooth	Bluetooth 4.2
2.4G	2.4G Adaptor
Communication	2.4G wireless+Blue-tooth, USB charging cable can be used as wired transmission data
OS	IOS, Android, Windows, Mac
Battery Capacity	2000mA, can't removable
Standby Time	> 30 days
Charge time	3-4 hours
Working time	6-7 hours(5S per scan)

User Environment

Barcode Scanning

Operating Temp.	0℃ - 50℃
Storage Temp.	-40℃ - 60℃
Environment humidity	5%RH--95%RH(no condensation)
Drop specification	Pass 100 times 1.5m drop test
Tumble Spec.	None
Protection level	None

2D Scanner	2D Image Sensors
1D Symbologies	:EAN- 13，EAN-8，UPC-A，UPC-E，ISSN，ISBN，CodaBar，Code 128， Code93，ITF- 14，ITF-6，Interleaved 2 of 5， Industrial 2 of 5，Matrix 2 of 5，GS1 Databar(RSS)，Code 39，Code 11，MSI-Plessey，etc
2D Symbologies	QR Code，Data Matrix，PDF417，Micro PDF417，Micro QR， Aztec，etc
